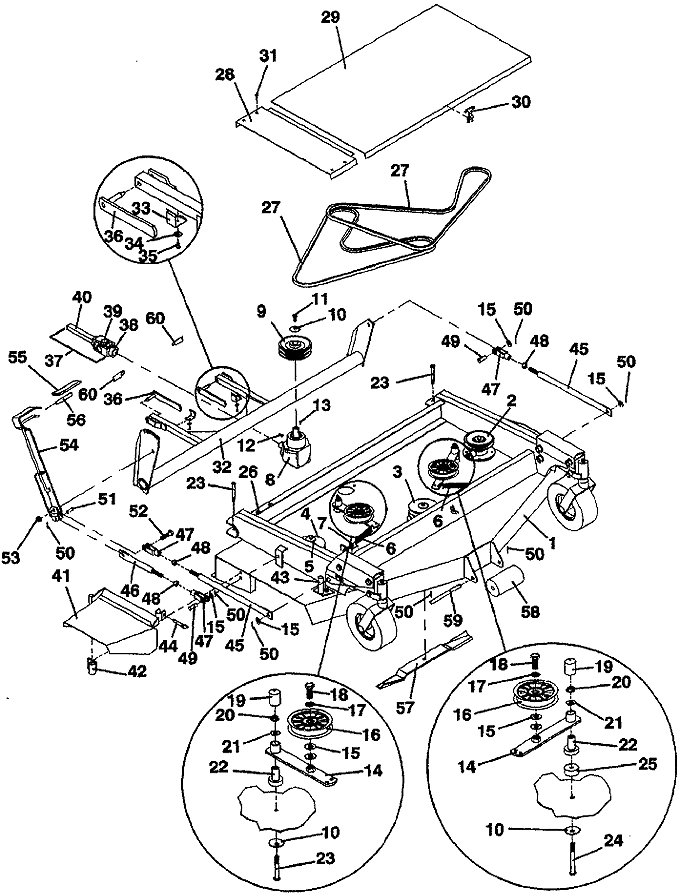

9061 Deck Mower Assembly - 1992
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643275 - 9061 Deck Weldment | Call For Details | |
| 2 | 415865 - Sheave | Add To Cart | |
| 3 | 831525 - Sheave | Add To Cart | |
| 4 | 415866 - Sheave | Add To Cart | |
| 5 | 282630 - Spacer | Add To Cart | |
| 6 | 283820 - Extension Spring with Swivel | Add To Cart | |
| 7 | 730391 - Idler Adjustment J Bolt | Add To Cart | |
| 8 | 390024 - Counter Clockwise Right Angle Gearbox | Add To Cart | |
| 9 | 416116 - Sheave | Add To Cart | |
| 10 | 257041 - Cupped Washer | Add To Cart | |
| 11 | 243331 - Hex Bolt | Add To Cart | |
| 12 | 281833 - Woodruff Key | Add To Cart | |
| 13 | 281828 - Woodruff Key | Add To Cart | |
| 14 | 824502 - Idler Arm with Pedestal Bearing | Add To Cart | |
| 15 | 257062 - Washer | Add To Cart | |
| 16 | 393225 - Idler | Add To Cart | |
| 17 | 257432 - Lock Washer | Add To Cart | |
| 18 | 243565 - Hex Bolt | Add To Cart | |
| 19 | 422098 - Vinyl Cap | Add To Cart | |
| 20 | 253043 - Nut | Add To Cart | |
| 21 | 257040 - Washer | Add To Cart | |
| 22 | 121650 - Pedestal Bearing | Add To Cart | |
| 23 | 243365 - Hex Bolt | Add To Cart | |
| 24 | 243385 - Hex Bolt | Add To Cart | |
| 25 | 902317 - Idler Arm Spacer | Add To Cart | |
| 26 | 254431 - Speed Nut | Add To Cart | |
| 27 | 382049 - Belt | Add To Cart | |
| 28 | 722322 - 9661 right Belt Shield | Add To Cart | |
| 29 | 603782 - 9061 Shield Assembly | Add To Cart | |
| 30 | 281301 - Rubber Draw Latch | Add To Cart | |
| 31 | 253173 - Hex Whiz Bolt | Add To Cart | |
| 32 | 643502 - 9061 Mower Lift Arm w/a | Call For Details | |
| 33 | 280390 - Attaching Pin Clip | Add To Cart | |
| 34 | 770025 - Pin Clip Washer | Add To Cart | |
| 35 | 262644 - Drive Screw | Add To Cart | |
| 36 | 643625 - Attaching Pin | Add To Cart | |
| 37 | 398525 - UN Half Shaft | Add To Cart | |
| 38 | 401010 - Yoke | Add To Cart | |
| 39 | 121010 - Cross Bearing | Add To Cart | |
| 40 | 402605 - Yoke Shaft | Add To Cart | |
| 41 | 643747 - 90 Series Discharge Shield | Add To Cart | |
| 42 | 643632 - Vac Housing Pivot Mount | Add To Cart | |
| 43 | 643235 - Clevis Shaft | Add To Cart | |
| 44 | 260400 - Hitch Pin | Add To Cart | |
| 45 | 603568 - 61 Deck Linkage Arm | Add To Cart | |
| 46 | 603562 - Lift Lever Linkage | Add To Cart | |
| 47 | 265554 - Clevis Yoke | Add To Cart | |
| 48 | 254475 - Nut | Add To Cart | |
| 49 | 261426 - Clevis Pin | Add To Cart | |
| 50 | 260650 - Cotter Pin | Add To Cart | |
| 51 | 261346 - Clevis Pin | Add To Cart | |
| 52 | 243580 - Hex Bolt | Add To Cart | |
| 53 | 253930 - Lock Nut | Add To Cart | |
| 54 | 643529 - Deck Lift Lever | Add To Cart | |
| 55 | 422155 - Handle Grip | Add To Cart | |
| 56 | 422158 - Handle Grip | Add To Cart | |
| 57 | 320245 - 21 inch High Lift Notch Blade | Call For Details | |
| - | 320242 - 21 inch Medium Lift Blade | Call For Details | |
| - | 320244 - 21 inch Contour Blade | Call For Details | |
| - | 320246 - 21 inch Extreme High Lift Blade | Call For Details | |
| 58 | 426136 - Roller Assembly | Add To Cart | |
| 59 | 780606 - Roller Pin | Add To Cart | |
| 60 | 261848 - Safety Pin | Add To Cart | |
| 61 | 603280 - Mower Safety Decal Set | Add To Cart |
