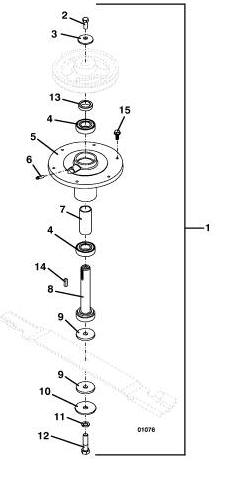

Item # |
Description |
Part Number |
| 1 |
SPINDLE ASSY - BLADE LT/RT M1 |
623786 |
| 2 |
HEX BOLT |
243331 |
| 3 |
WASHER - CUPPED |
257041 |
| 4 |
BEARING - BALL SINGLE SEAL |
110082 |
| 5 |
DEEP SPINDLE - MACHINED |
824150 |
| 6 |
FITTING GREASE |
280745 |
| 7 |
SPACER - BEARING DEEP SPINDLE |
903643 |
| 8 |
SPINDLE - SHAFT ASSY 98S |
604774 |
| 9 |
WASHER - FIBER |
421200 |
| 10 |
WASHER |
257061 |
| 11 |
WASHER - LOCK |
257432 |
| 12 |
HEX BOLT |
243581 |
| 13 |
SPACER |
282615 |
| 14 |
KEY SQUARE |
281586 |
| 15 |
BOLT WHIZ HEX FLANGE |
253192 |
