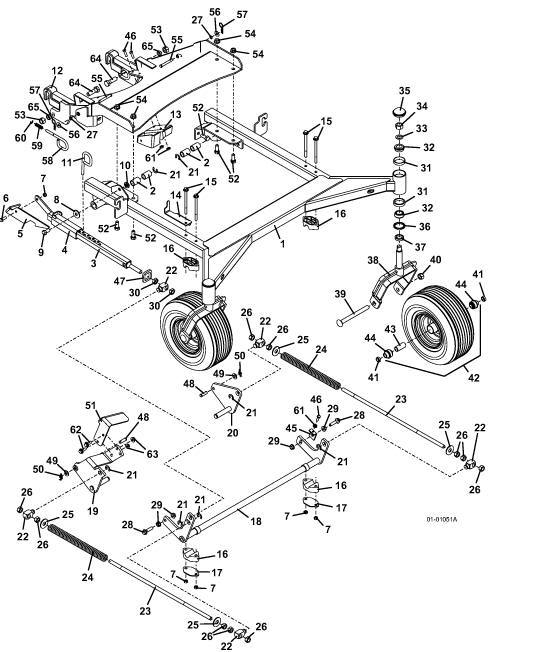

9772 Model Deck Carrier Assembly - 2003
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 644055 - CARRIER - 9772 | Call For Details | |
| 2 | 121766 - BEARING OILITE | Add To Cart | |
| 3 | 644734 - TUBE - HEIGHT ADJUSTMENT 9772 | Call For Details | |
| 4 | 644305 - GUIDE - LATCH TUBE | Add To Cart | |
| 5 | 775111 - LATCH - DECK HEIGHT 9772 | Add To Cart | |
| 6 | 243330 - HEX BOLT | Add To Cart | |
| 7 | 253890 - NUT LOCK | Add To Cart | |
| 8 | 821516 - WASHER - NYLON | Add To Cart | |
| 9 | 243560 - HEX BOLT | Add To Cart | |
| 10 | 253470 - NUT INSERT NYLON | Add To Cart | |
| 11 | 730434 - DECK PIN - HEIGHT ADJUSTMENT | Add To Cart | |
| 12 | 644054 - ATTACHING ARM - 9772 | Call For Details | |
| 666047 - ATTACHING ARM - 9772 | Call For Details | ||
| 13 | 644566 - MOUNT - 9772 DECK JACK | Add To Cart | |
| 14 | 754054 - INDICATOR - CUTTING HEIGHT | Call For Details | |
| 15 | 253215 - BOLT FLANGE | Add To Cart | |
| 16 | 423643 - BEARING BLOCK - M1 | Add To Cart | |
| 17 | 774064 - PLATE - LIFT BEARING | Add To Cart | |
| 18 | 644533 - LIFT LEVER - 9722 DECK | Call For Details | |
| 19 | 644700 - ROCKER - REAR W/LEVER | Call For Details | |
| 20 | 644708 - ROCKER - REAR DECK M1 LT | Add To Cart | |
| 21 | 263529 - RETAINER EXTERNAL | Add To Cart | |
| 22 | 882035 - SHAFT - SPRING ROD MT | Add To Cart | |
| 23 | 780663 - SHAFT - SPRING | Call For Details | |
| 24 | 283395 - SPRING - COMPRESSION | Add To Cart | |
| 25 | 257080 - WASHER | Add To Cart | |
| 26 | 254490 - NUT | Add To Cart | |
| 27 | 262950 - RETAINER PUSH-ON | Add To Cart | |
| 28 | 243458 - HEX BOLT GR 8 | Add To Cart | |
| 29 | 253058 - NUT WHIZ | Add To Cart | |
| 30 | 254493 - NUT | Add To Cart | |
| 31 | 123522 - BEARING CUP | Add To Cart | |
| 32 | 122522 - BEARING - TAPER | Add To Cart | |
| 33 | 257091 - WASHER -14 GA BUSHING | Add To Cart | |
| 34 | 253992 - NUT LOCK | Add To Cart | |
| 35 | 481434 - DUST CAP - DOMED | Add To Cart | |
| 36 | 125855 - SEAL | Add To Cart | |
| 37 | 282615 - SPACER | Add To Cart | |
| 38 | 604365 - FORK & LK NUT ASSY | Add To Cart | |
| 39 | 247725 - CARRIAGE BOLT | Add To Cart | |
| 40 | 253970 - NUT LOCK | Add To Cart | |
| 41 | 902422 - SPACER - AXLE | Add To Cart | |
| 42 | 603975 - WHEEL ASSY - REAR W/DP BEARINGS | Add To Cart | |
| 43 | 902429 - SPACER -AXLE CENTER REAR | Add To Cart | |
| 44 | 120048 - BEARING - BALL DP WHEEL | Add To Cart | |
| 45 | 732586 - STRAP ADJUSTING M1 DECK | Add To Cart | |
| 46 | 243205 - HEX BOLT | Add To Cart | |
| 47 | 423696 - SPACER - HEIGHT ADJUSTMENT M1 | Add To Cart | |
| 48 | 261405 - CLEVIS PIN | Add To Cart | |
| 49 | 253051 - WASHER | Call For Details | |
| 50 | 260612 - RING COTTER | Add To Cart | |
| 51 | 733357 - FOOT LEVER - ADJUSTABLE | Add To Cart | |
| 52 | 253565 - HEX BOLT | Call For Details | |
| 53 | 253970 - NUT LOCK | Add To Cart | |
| 54 | 253067 - NUT FLANGE SPIRAL LOC | Add To Cart | |
| 55 | 261365 - CLEVIS PIN | Add To Cart | |
| 56 | 257040 - WASHER | Add To Cart | |
| 57 | 260523 - HAIR PIN | Add To Cart | |
| 58 | 730433 - LATCH PIN - DECK MOUNT | Add To Cart | |
| 59 | 283285 - SPRING - COMPRESSION | Add To Cart | |
| 60 | 263490 - RETAINER EXTERNAL | Add To Cart | |
| 61 | 253035 - NUT WHIZ | Add To Cart | |
| 62 | 253203 - BOLT WHIZ FLANGE | Add To Cart | |
| 63 | 253043 - NUT WHIZ | Add To Cart | |
| 64 | 243810 - HEX BOLT | Add To Cart | |
| 65 | 902422 - SPACER - AXLE | Add To Cart |
