9772 Model Deck

Year Model: 2003

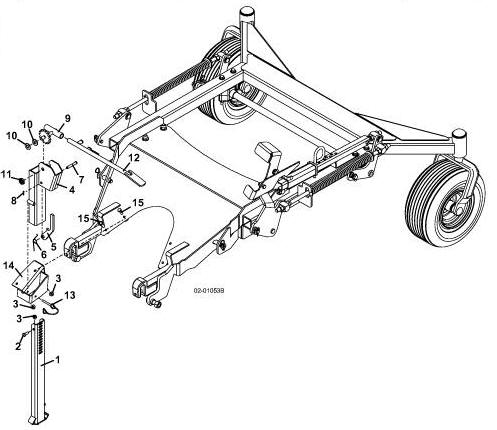

Jack Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1 FOOT - 72 JACK 644650
2 HEX BOLT 243185
3 NUT WHIZ 253035
4 RATCHET HOUSING - 72 JACK 644660
5 LATCH - 72 JACK 644450
6 SPRING - TORSION 284418
7 CLEVIS PIN 261308
8 COTTER PIN 260624
9 SPROCKET ASS'Y JACK 644735
10 WASHER 257062
11 NUT INSERT NYLON 253470
12 HANDLE - 72 JACK 644310
13 LINCH PIN 261624
14 MOUNT - 9772 DECK JACK 644566
15 HEX BOLT 243205
16 JACK ASSEMBLY - 72 604475
