grasshopper

9772 Model Deck

Year Model: 2003

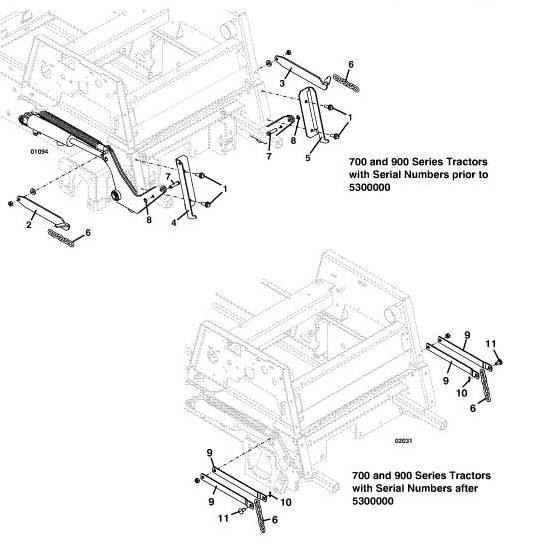

Traction Kit Adapter


Click On The Part Number For Details

Item #

Description

Part Number

1 BOLT WHIZ FLANGE 253203
  NUT WHIZ 253043
2 CHAIN MOUNT BRACKET - RIGHT 755018
3 CHAIN MOUNT BRACKET - LEFT 755019
4 BRACKET - CHAIN GUIDE RT 754031
5 BRACKET - CHAIN GUIDE LT 754032
6 CHAIN - LIFT 820320
7 CLEVIS PIN 261355
8 RETAINER PUSH-ON 262950
9 STRAP - LIFT 600 W/SL DECK 732410
10 COTTER PIN 260648
11 CLEVIS PIN 261336
