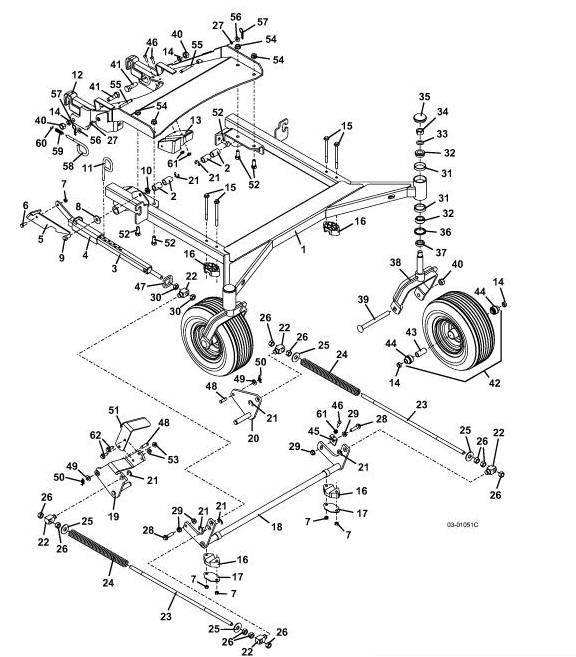

Item # |
Description |
Part Number |
1 |
CARRIER - 9772 |
644055 |
|
DECAL - CUTTING HEIGHT M1 |
162187 |
2 |
BEARING OILITE |
121766 |
3 |
TUBE - HEIGHT ADJUSTMENT 9772 |
644734 |
4 |
GUIDE - LATCH TUBE |
644305 |
5 |
LATCH - DECK HEIGHT 9772 |
775111 |
6 |
HEX BOLT |
243330 |
7 |
NUT LOCK |
253890 |
8 |
WASHER - NYLON |
821516 |
9 |
HEX BOLT |
243560 |
10 |
NUT INSERT NYLON |
253470 |
11 |
DECK PIN - HEIGHT ADJUSTMENT |
730434 |
12 |
ATTACHING ARM - 9772 |
644054 |
13 |
MOUNT - 9772 DECK JACK |
644566 |
14 |
SPACER - AXLE |
902422 |
15 |
BOLT FLANGE |
253215 |
16 |
BEARING BLOCK - M1 |
423643 |
17 |
PLATE - LIFT BEARING |
774064 |
18 |
LIFT LEVER - 9772 DECK |
644533 |
19 |
ROCKER - REAR W/LEVER |
644700 |
20 |
ROCKER - REAR DECK M1 LT |
644708 |
21 |
RETAINER EXTERNAL |
263529 |
22 |
SHAFT - SPRING ROD MT |
882035 |
23 |
SHAFT - SPRING |
780663 |
24 |
SPRING - COMPRESSION |
283395 |
25 |
WASHER |
257080 |
26 |
NUT |
254490 |
27 |
RETAINER PUSH-ON |
262950 |
28 |
HEX BOLT GR 8 |
243458 |
29 |
NUT WHIZ |
253058 |
30 |
NUT |
254493 |
31 |
BEARING CUP |
123522 |
32 |
BEARING - TAPER |
122522 |
33 |
WASHER - 14 GA BUSHING |
257091 |
34 |
NUT LOCK |
253992 |
35 |
DUST CAP - DOMED |
481434 |
36 |
SEAL |
125855 |
37 |
SPACER |
282615 |
38 |
FORK & LK NUT ASSY |
604365 |
39 |
CARRIAGE BOLT |
247725 |
40 |
NUT LOCK |
253970 |
41 |
HEX BOLT |
243810 |
42 |
WHEEL ASSY - REAR W/DP BEARINGS |
603975 |
43 |
SPACER - AXLE CENTER REAR |
902429 |
44 |
BEARING - BALL DP WHEEL |
120048 |
45 |
STRAP - ADJUSTING M1 DECK |
732586 |
46 |
HEX BOLT |
253205 |
47 |
SPACER - HEIGHT ADJUSTMENT M1 |
423696 |
48 |
CLEVIS PIN |
261405 |
49 |
WASHER |
257051 |
50 |
RING COTTER |
260612 |
51 |
FOOT LEVER - ADJUSTABLE |
733357 |
52 |
HEX BOLT |
243565 |
53 |
NUT WHIZ |
253043 |
54 |
NUT FLANGE SPIRAL LOC |
253067 |
55 |
CLEVIS PIN |
261365 |
56 |
WASHER |
257040 |
57 |
HAIR PIN |
260523 |
58 |
LATCH PIN - DECK MOUNT |
732433 |
59 |
SPRING - COMPRESSION |
283285 |
60 |
RETAINER EXTERNAL |
163490 |
61 |
NUT WHIZ |
253035 |
62 |
BOLT WHIZ FLANGE |
253203 |
