grasshopper

9772 Model Deck

Year Model: 2006

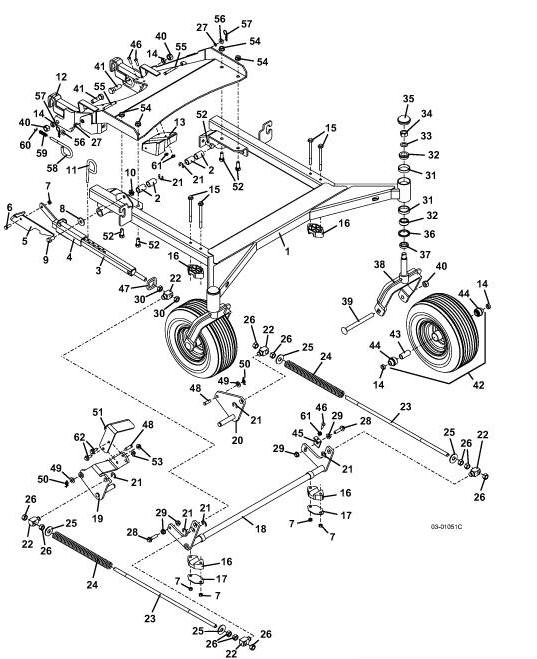

Carrier Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1 CARRIER - 9772 644055
  DECAL - CUTTING HEIGHT M1 162187
2 BEARING OILITE 121766
3 TUBE - HEIGHT ADJUSTMENT 9772 644734
4 GUIDE - LATCH TUBE 644305
5 LATCH - DECK HEIGHT 9772 775111
6 HEX BOLT 243330
7 NUT LOCK 253890
8 WASHER - NYLON 821516
9 HEX BOLT 243560
10 NUT INERT NYLON 253470
11 DECK PIN - HEIGHT ADJUSTMENT 730434
12 ATTACHING ARM - 9772 644054
13 MOUNT - 9772 DECK JACK 644566
14 SPACER - AXLE 902422
15 BOLT FLANGE 253215
16 BEARING BLOCK - M1 424643
17 PLATE - LIFT BEARING 774064
18 LIFT LEVER - 9772 644533
19 ROCKER - REAR W/LEVER 644700
20 ROCKER - REAR DECK M1 LT 644708
21 RETAINER EXTERNAL 263529
22 SHAFT - SPRING ROD MT 882035
23 SHAFT - SPRIG 780663
24 SPRING - COMPRESSION 283395
25 WASHER 257080
26 NUT 254490
27 RETAINER PUSH-ON 262950
28 HEX BOLT GR 8 243458
29 NUT WHIZ 253058
30 NUT 254493
31 BEARING CUP 123522
32 BEARING - TAPER 122522
33 WASHER - 14 GA BUSHING 257091
34 NUT LOCK 253992
35 DUST CAP - DOMED 481434
36 SEAL 125855
37 SPACER 282615
38 FORK & LK NUT ASSY 604365
39 CARRIAGE BOLT 247725
40 NUT LOCK 253970
41 HEX BOLTQ 243810
42 WHEEL ASSY - REAR W/DP BEARINGS 603975
43 SPACER - AXLE CENTER REAR 902429
44 BEARING - BALL DP WHEEL 120048
45 STRAP - ADJUSTING M1 DECK 732586
46 HEX BOLT 243205
47 SPACER - HEIGHT ADJUSTMENT M1 423696
48 CLEVIS PIN 261405
49 WASHER 257051
50 RING COTTER 260612
51 FOOT LEVER - ADJUSTABLE 733357
52 HEX BOLT 243565
53 NUT WHIZ 253043
54 NUT FLANGE SPIRAL LOC 253067
55 CLEVIS PIN 261365
56 WASHER 257040
57 HAIR PIN 260523
58 LATCH PIN - DECK MOUNT 730433
59 SPRING - COMPRESSION 283285
60 RETAINER EXTERNAL 263490
61 NUT WHIZ 253035
62 BOLT WHIZ FLANGE 253203
