grasshopper

9772 Model Deck

Year Model: 2006

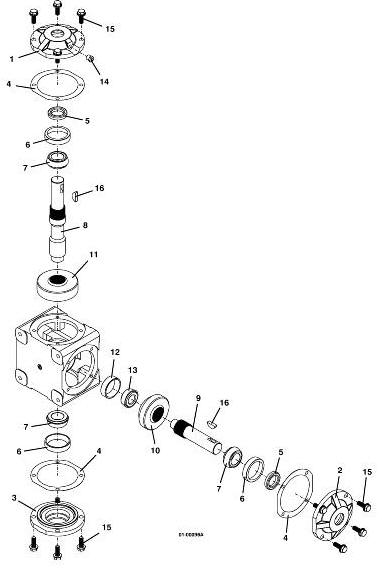

Right Angle Gearbox Assembly


Click On The Part Number For Details

Item #

Description

Part Number

1 CAP THRU WVENT 392055
2 CAP THRU 392056
3 CAP BLANK 392057
4 GASKET SHIM 420403
  GASKET SHIM 420402
  GASKET SHIM 420401
5 SEAL 125384
6 BEARING CUP 123522
7 BEARING - TAPER 122522
8 SHAFT THRU SPLINED 393615
9 SHAFT SPLINED 393615
10 GEAR BEVEL RH 33 TEETH 392530
  GEAR LH 24 TEETH 392532
11 GEAR BEVEL RH 33 TEETH 392531
  GEAR RH TEETH 382533
12 BEARING CUP 123510
13 BEARING TAPER 122510
14 PLUG - VENT 365505
15 BOLT WHIZ HEX FLANGE 253192
16 KEY WOODRUFF 281839
17 GEARBOX - RT ANGLE-STANDARD 390029
18 GEARBOX - RT ANGLE HI-PERFORM 390030
