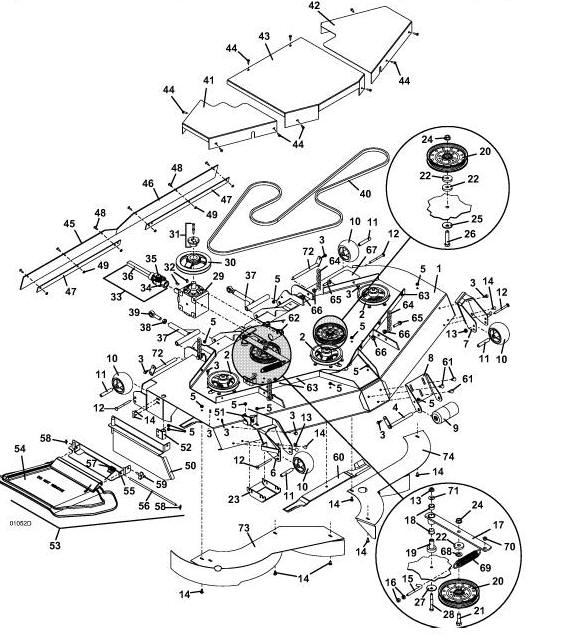

9772 Model Deck Mower Assembly - 2006
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
| Item # | Part Number - Description | Price | |
|---|---|---|---|
| 1 | 643996 - MOWER DECK - 9722 | Call For Details | |
| 2 | 414745 - SHEAVE | Add To Cart | |
| 3 | 253192 - BOLT WHIZ HEX FLANGE | Add To Cart | |
| 4 | 644512 - LOCK PIN - ROLLER | Add To Cart | |
| 5 | 253035 - NUT WHIZ | Add To Cart | |
| 6 | 644584 - MOUNT - ANTI SCALP ROLLER RT | Add To Cart | |
| 7 | 643695 - MOUNT - ANTI SCALP ROLLER LT | Add To Cart | |
| 8 | 755071 - ROLLER MOUNT -M1 72 | Add To Cart | |
| 9 | 603725 - ROLLER - CENTER 2 PIECE ASSY | Add To Cart | |
| 10 | 484230 - WHEEL - ANTI-SCALP CTR HUB | Add To Cart | |
| 11 | 942137 - TUBE - BEARING | Add To Cart | |
| 12 | 247310 - CARRIAGE BOLT | Add To Cart | |
| 13 | 253043 - NUT WHIZ | Add To Cart | |
| 14 | 247130 - CARRIAGE BOLT | Add To Cart | |
| 15 | 730391 - J BOLT - IDLER ADJUSTMENT | Add To Cart | |
| 16 | 254450 - NUT | Add To Cart | |
| 17 | 824488 - IDLER ARM ASSY - M1 52/61 | Add To Cart | |
| 18 | 121756 - BEARING - OILITE | Add To Cart | |
| 19 | 121650 - BEARING PEDESTAL | Add To Cart | |
| 20 | 393250 - IDLER | Add To Cart | |
| 21 | 243575 - HEX BOLT | Add To Cart | |
| 22 | 883804 - WASHER | Add To Cart | |
| 23 | 754149 - SHIELD - 9772 GEARBOX | Call For Details | |
| 24 | 253067 - NUT FLANGE SPIRAL LOC | Add To Cart | |
| 25 | 257059 - WASHER - CUPPED | Add To Cart | |
| 26 | 243590 - HEX BOLT | Add To Cart | |
| 27 | 257041 - WASHER BOLT | Add To Cart | |
| 28 | 243365 - HEX BOLT | Add To Cart | |
| 29 | 390029 - GEARBOX - RT ANDLE-STANDARD | Add To Cart | |
| 390030 - GEARBOX -RT ANGLE HI-PERFORM | Call For Details | ||
| 30 | 416345 - SHEAVE | Add To Cart | |
| 31 | 417010 - BUSHING | Add To Cart | |
| 32 | 281839 - KEY WOODRUFF | Add To Cart | |
| 33 | 398529 - UN HALF SHAFT | Add To Cart | |
| 34 | 401013 - YOKE | Add To Cart | |
| 35 | 121010 - CROSS & BEARING | Add To Cart | |
| 36 | 402608 - YOKE AND SHAFT | Add To Cart | |
| 37 | 604672 - RADIUS ARM ASSY -8 9772 | Add To Cart | |
| 38 | 254493 - NUT | Add To Cart | |
| 39 | 265665 - ROD END | Add To Cart | |
| 40 | 382099 - BELT | Add To Cart | |
| 41 | 723238 - SHIELD - BELT 9772 RIGHT | Add To Cart | |
| 42 | 723347 - SHIEDL - BELT 0772 LEFT | Add To Cart | |
| 43 | 723369 - SHIELD - BELT 9772 CENTER | Add To Cart | |
| 44 | 253175 - BOLT WHIZ HEX | Add To Cart | |
| 45 | 424210 - FLAP - DECK 9772 RIGHT | Call For Details | |
| 46 | 424214 - FLAP - DECK 9772 LEFT | Add To Cart | |
| 47 | 774337 - STRAP - DEFLECTOR M161/9772 | Add To Cart | |
| 48 | 253177 - BOLT WHIZ TRUSS | Add To Cart | |
| 49 | 253025 - NUT WHIZ | Add To Cart | |
| 50 | 644058 - END CAP - MULCH 3452/61 | Add To Cart | |
| 51 | 254448 - NUT SPEED ZP | Add To Cart | |
| 52 | 643632 - MOUNT - PIVOT VAC HOUSING | Add To Cart | |
| 53 | 604317 - DISCRG SHLD ASSY-FLEX 3452/61 | Add To Cart | |
| 54 | 422042 - SHIELD - FLEX DISCHARGE | Add To Cart | |
| 55 | 644570 - MOUNT - DISCHARGE SHLD 3452/61 | Add To Cart | |
| 56 | 780650 - PIN -FLEX DISCHARGE SHIELD | Add To Cart | |
| 57 | 284406 - SPRING - TORSION | Add To Cart | |
| 58 | 260608 - RING COTTER | Add To Cart | |
| 59 | 252821 - STUD -3 PRONG HD - DECK | Add To Cart | |
| 60 | 320253 - BLADE -25 HI-LIFT NOTCH | Call For Details | |
| 320250 - BLADE -25 MED LIFT | Call For Details | ||
| 320252 - BLADE -25 CONTOUR | Call For Details | ||
| 320254 - BLADE -25 EXTREME HI-LIFT | Call For Details | ||
| 61 | 247253 - CARRIAGE BOLT | Add To Cart | |
| 62 | 253200 - BOLT WHIZ | Add To Cart | |
| 63 | 254431 - NUT | Add To Cart | |
| 64 | 820331 - CHAIN -5 LINKS M1 | Add To Cart | |
| 65 | 243458 - HEX BOLT GR8 | Add To Cart | |
| 66 | 253058 - NUT WHIZ | Add To Cart | |
| 67 | 420901 - TREAD - STEP | Add To Cart | |
| 68 | 257062 - WASHER | Add To Cart | |
| 69 | 283848 - SPRING - EXTENSION | Add To Cart | |
| 70 | 422520 - NYLON BEARING | Add To Cart | |
| 71 | 257040 - WASHER | Add To Cart | |
| 72 | 644636 - PIN - RADIUS ARM 9772 | Add To Cart | |
| 73 | 644612 - MULCH PLATE - M1 72 RIGHT | Call For Details | |
| 74 | 644613 - MULCH PLATE - M1 72 LEFT | Call For Details | |
| 75 | 603280 - DECAL SET - MOWER | Add To Cart |
