Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

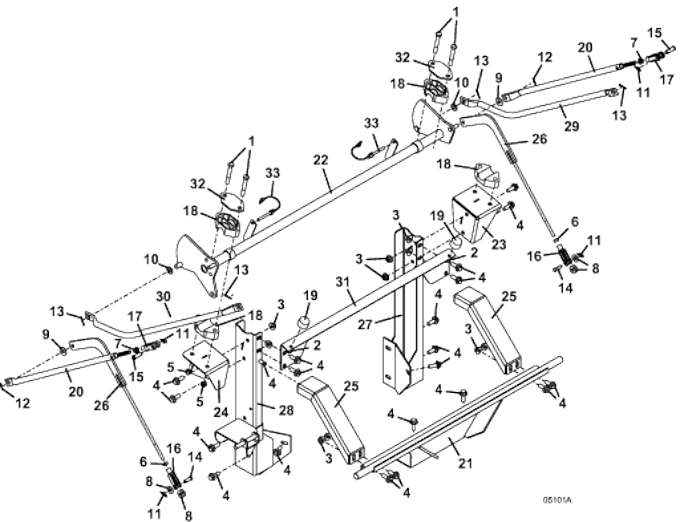

Model 16FM Lever Action Mount Kit

Mount Kit

16fm lever action mount

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hex Bolt

243360

2

Whiz Nut

253035

3

Whiz Nut

253043

4

Flanged Whiz Bolt

253203

5

Lock Nut

253890

6

Nut

254441

7

Nut

254452

8

Washer

257030

9

Washer

257040

10

Washer

257063

11

Cotter Ring

260606

12

Cotter Pin

260648

13

Cotter Pin

260650

14

Clevis Pin

261284

15

Clevis Pin

261346

16

Clevis Yoke

265537

17

Clevis Yoke

265545

18

M1 Bearing Block

423643

19

Rubber Bumper

424053

20

Model 16FM Linkage Tube Adjustment

643861

21

Model 16FM Crossmember

644323

22

Shaft Latch

644686

23

Model 16FM Right Pivot Block Mount

644378

24

Model 16FM Left Pivot Block Mount

644379

25

Model 16FM Reinforcement Channel

644676

26

Latch Linkage Rod

644729

27

Model 16FM Right Upright Hopper Mount

644802

28

Model 16FM Left Upright Hopper Mount

644803

29

Model 16FM Right Linkage Offset

734041

30

Model 16FM Left Linkage Offset

734042

31

Model 16 Uprights Crossmember

754254

32

Lift Bearing Plate

774064

33

Linch Pin

261624

34

Model 16FM Collector Assembly with Mount

503194

Return to Model 16FM Mount Kit Index Return to Top
