Genuine OEM Grasshopper Lawn Mower Parts

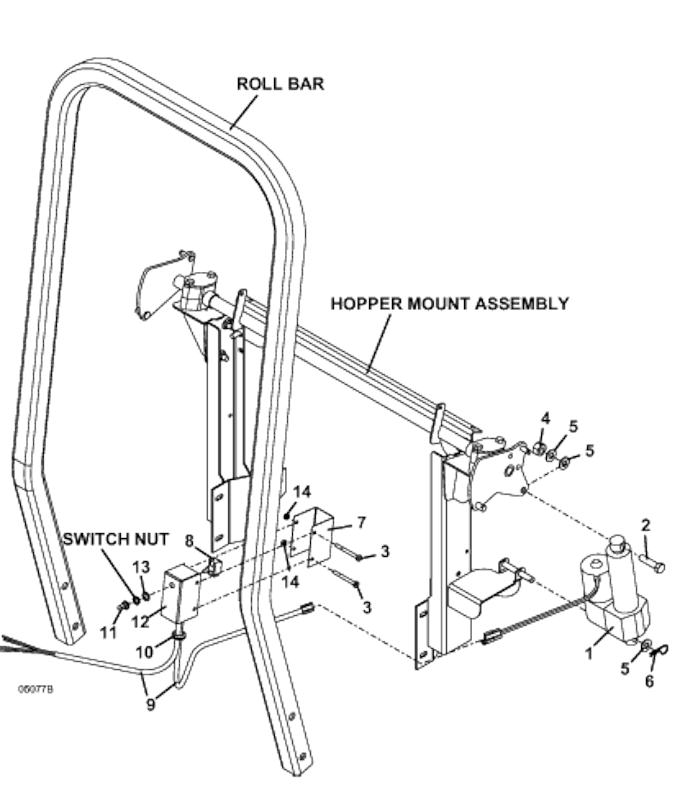

Genuine OEM Grasshopper® Mower Parts Diagrams

Model 16FM Lever Action Mount Kit

Power Actuated Kit

Model 16FM Power Actuated Mount Kit

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.

Item #

Description

Part Number

1

Actuator

180024

2

700 / 900 Series 15B Right Mount

243580

3

700 / 900 Series 15B Left Mount

243050

4

Whiz Nut

253930

5

Flanged Whiz Bolt

257062

6

Hair Pin

260523

7

Switch Mount Cover

721177

-

Model 16FM Power Actuator Wiring Harness

605946

8

Toggle

184084

-

Toggle Switch Boot

425200

-

Keyed Washer

770005

9

Flex Guard Loom

422275

10

Grommet

424230

11

Toggle Switch Boot

425200

12

Electric Hopper Switch Mount

721176

13

Keyed Washer

770005

14

Nylon Insert Nut

253440

15

Power Actuated Decal

162081

16

7.5 Amp Auto ATC Fuse

181460

17

30 Amp Auto ATC Fuse

181470

18

Inline Auto Fuse Holder

181735

19

12V DC Relay

184272

-

Type 1 6MM Pushon

184570

-

Faston Terminal

184581

-

5-Way Female Connector

184926

20

Tie

423147

21

Reel Tie

423148

22

Model 16FM Power Actuated Kit

504235
