Genuine OEM Grasshopper® Mower Parts Diagrams

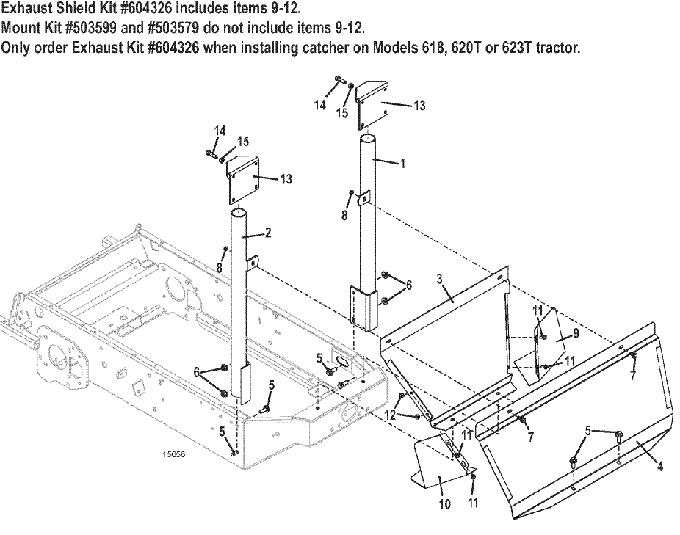

Model 8HT Grasscatcher Mount Kit
600 Series
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
Call Toll-Free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Right Fabric Top Support Frame |
643816 |
- |
Right 600T Model 7F Frame Support |
643884 |
2 |
Left Fabric Top Support Frame |
643817 |
- |
Left 600T Model 7F Frame Support |
643885 |
3 |
Dual Bag Heat Shield |
723289 |
4 |
600 8/12F Bag Shield |
722552 |
5 |
Flanged Whiz Bolt |
253203 |
6 |
Whiz Nut |
253043 |
7 |
Hex Flanged Whiz Bolt |
253192 |
8 |
Whiz Nut |
253035 |
9 |
Right 618/620T Exhaust Deflector |
722398 |
10 |
Left 618/620T Exhaust Deflector |
722399 |
11 |
Hex Whiz Bolt |
253173 |
12 |
Whiz Nut |
253025 |
13 |
Grasscatcher Top Bracket |
643115 |
14 |
Hex Bolt |
243335 |
15 |
Nut |
254450 |
16 |
600T 2 Bag Vacuum Mount Kit |
503599 |
17 |
600 Series Vacuum Bag Mount Kit |
503579 |
