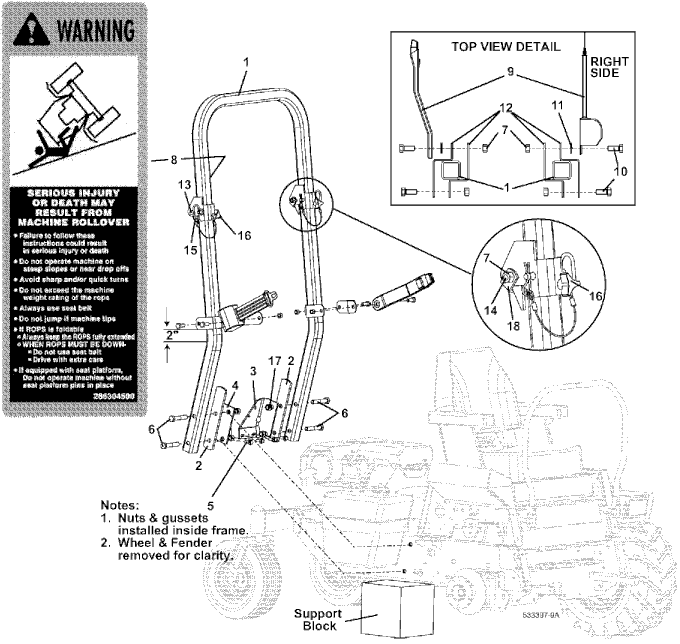

Fold Down Roll Over Protection Structure
700 / 900 Series
Serial Number 5499999 & Below


Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

700 / 900 Foldable ROPS Tube

324105

2

700 / 900 ROPS Spacer

901645

3

Left ROPS Gusset

726132

4

Right ROPS Gusset

726131

5

Flanged Whiz bolt

253203

6

Hex Bolt

243840

7

Lock Nut

253930

8

Machine Rollover Warning Decal

165679

9

Retractable Black Seat Belt

324122

10

Hex Bolt

243565

11

Washer

257062

12

Seatbelt / ROPS Mount

724574

13

Hex Bolt

243605

14

Hex Bolt

243610

15

Hitch Pin

260430

16

3 Prong ROPS Stud

252819

17

Lock Nut

253970

18

ROPS Stop

324085

19

700 / 900 ROPS Kit Air Cooled Pre '05

533397

20

700 / 900 ROPS Water Cooled Pre '05

533399
