Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

100 Series MidMount Tractors

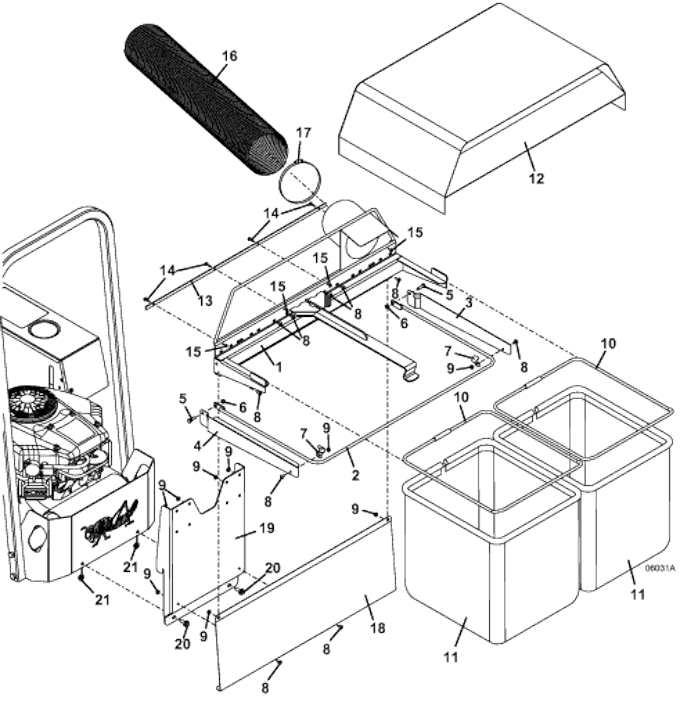

Model 8F M2 Catcher 503209

Model 8F M2 Catcher 503209 for 100 Series MidMount Tractors

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Twin Bag Frame

643373

2

Cloth Top Hinge

643446

3

Top Right Cloth Shield

723365

4

Top Left Cloth Shield

723366

5

Hex Bolt

243205

6

Nylon Insert Nut

253450

7

Conduit Clip

180630

8

Truss Whiz Bolt

253176

9

Whiz Nut

253025

10

Twin Bag Rod

643723

11

3 Bushel Hard Bottom Bag White

420004

-

Vac Hard Bottom Black Bag

420019

12

Catcher Top 2 Bag White

420035

12

Catcher Top 2 Bag Black

420034

13

Cloth Top Hold Down Strap

782336

14

Hex Whiz Bolt

253167

15

Nut

254421

16

44" Flex Hose

424398

17

6" Hose Clamp

280345

18

M2/200V Catcher Heat Shield

722805

19

M2 Catcher Mount Plate

729634

20

Flanged Whiz Bolt

253203

21

Whiz Nut

253043

22

8F M2 Catcher with Mount and Hose

503209

Return to 100 Series MidMount Grasscatcher Index Return to Top
