Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

100 Series MidMount Tractors

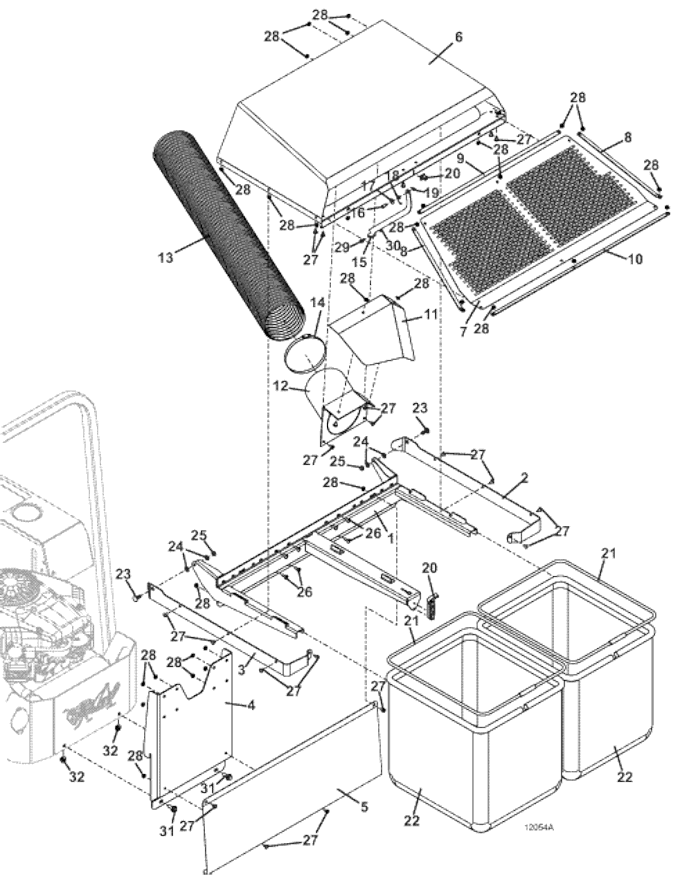

Model 8HT M2 Catcher

Model 8HT M2 Catcher for 100 Series MidMount Tractors

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

8HT Bagger Frame

645373

2

Top Right Guard Strap

732623

3

Top Left Guard Strap

732624

4

M2 Catcher Mount Plate

729634

5

M2/200V Catcher Heat Shield

722805

6

8HT Collector Top

645830

7

8/12HT Fabric Screen

420008

-

8/12HT Metal Screen

721389

8

HT Fabric Screen Side Strap

782305

9

HT Fabric Screen Front Strap

782311

10

HT Fabric Screen Rear Strap

782361

11

8HT Inlet Deflector

721331

12

Inlet Tube

645183

13

44" Flex Hose

424398

14

6" Hose Clamp

280345

15

Hard Top Prop

754101

16

Clevbis Pin

261279

17

Washer

257020

18

Torsion Spring

284407

19

Cotter Ring

260606

20

Flixible Draw Latch

281304

21

8/12HT Bag Rod

645723

22

3 Bushel Hard Bottom White Vac Bag

420004

-

Hard Bottom Black Vac Bag

420019

23

Carriage Bolt

247253

24

Nylon Washer

257047

25

Nylon Insert Nut

253460

26

Truss Whiz Bolt

253177

27

Truss Whiz Bolt

253176

28

Whiz Nut

253025

29

Hex Whiz Bolt

253176

30

Nylon Insert Nut

253440

31

Flanged Whiz Bolt

253203

32

Whiz Nut

253043

33

8HT Collector with Mount for 100V/200VG4

504188
