Genuine OEM Grasshopper® Mower Parts Diagrams

100 Series MidMount Tractors

M248D M252D & M261D Deep Deck Vacuum & Drive Assembly

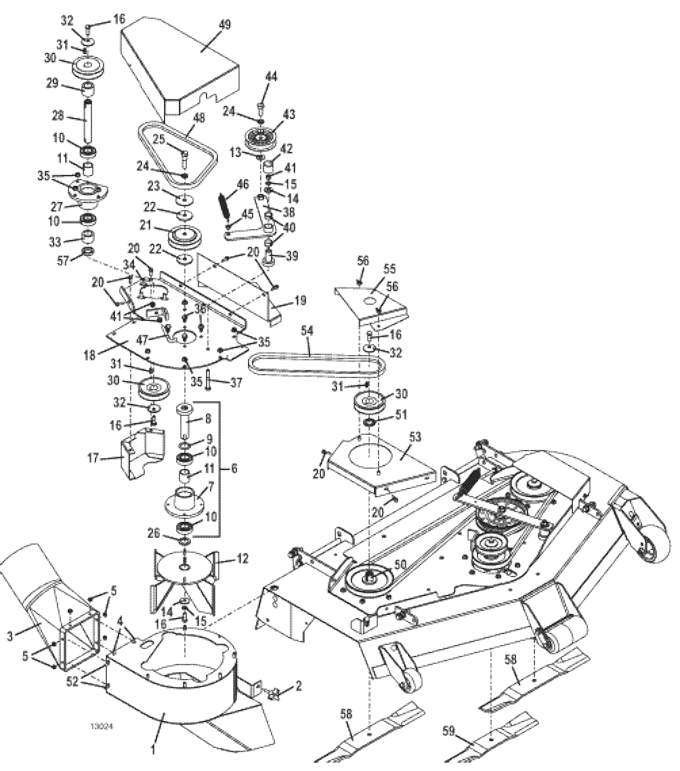

M248D M252D M261D Deep Deck Vacuum and Drive Assembly for 100 Series MidMount Tractors

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Blower Housing

644335

2

3 Prong HD Deck Stud

252821

3

Hose Adapter Tube

833510

4

Truss Whiz Bolt

253177

5

Whiz Nut

253025

6

Vacuum Fan Spindle Assembly

604795

7

Vacuum Fan Spindle Housing

320522

8

Vacuum Spindle Shaft

604765

9

Washer

257106

10

Ball Bearing

110080

11

Drive Bearing Spacer

903650

12

25MM Vacuum Fan

824533

13

Washer

257062

14

Washer

257040

15

Lock Washer

257412

16

Hex Bolt

243331

17

Jack Drive Shield

645766

18

M148D Vacuum Blower Top

645841

19

Vacuum Drive Belt Shield (for M248 & M252)

723511

19

Belt Guard (for M261)

722378

20

Hex Whiz Bolt

253175

21

Sheave

415845

22

Fiber Washer

421200

23

Washer

257061

24

Lock Washer

257432

25

Grade 5 Hex Bolt

243581

26

Washer

257104

27

Vacuum Modified Spindle Housing

833169

28

Jack Shaft

882094

29

Vacuum Spindle Spacer

902648

30

Sheave (Used on M248 & M252)

414685

30

Sheave (Used on M261)

414696

31

Sqaure Key

281580

32

Cupped Washer

257041

33

Vacuum Spindle Lower Spacer

902645

34

Flanged Hex Whiz Bolt

253193

35

Whiz Nut

253035

36

Flanged Hex Whiz Bolt

253191

37

Hex Bolt

243360

38

M1 Vacuum Idler Arm

824537

39

Pedestal Bearing

121650

40

Oilite Bearing

121756

41

Nut

254450

42

Vinyl Cap

422098

43

Idler

393200

44

Hex Bolt

243565

45

Nylon Bearing

422520

46

Extension Spring with Swivel

283820

47

Idler Adjustment "J" Bolt

730391

48

Upper Vacuum Belt

382733

49

Blower Belt Shield

645767

50

Spindle Shaft Assembly

605771

51

Spacer

282607

52

Truss Whiz Bolt

253176

53

Mount Shield (For M248 Decks)

645584

53

Mount Shield (For M252 Decks)

645583

53

100V/61 Vacuum Mount Shield

645588

54

Lower Vacuum Belt (For M248 & M252 Decks)

382750

54

Lower Vacuum Belt (For M261 Decks)

382753

55

Vacuum Drive Shield (For M248 & M252 Decks)

723512

55

Vacuum Drive Shield (For M261 Decks)

723514

56

Nut

254443

57

Spacer

282615

58

18" Medium Lift Blade

320236

58

21" Medium Lift Blade

320242

59

15" Medium Lift Blade

320231

Return to 100 Series MidMount Grasscatcher Index Return to Top
