Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

100 Series MidMount Tractors

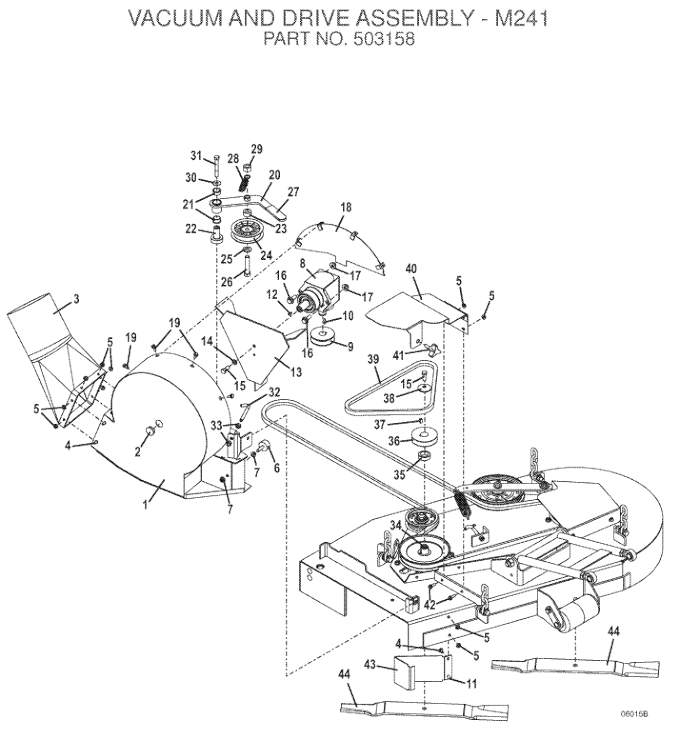

Vacuum & Drive Assembly M241 503158

Vacuum and Drive Assembly M241 part number 503158 for 100 Series FrontMount Tractors

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Housing

645418

2

1" Diameter Plastic Hose Plug

422075

3

Hose Adapter Tube

833510

4

Truss Whiz Bolt

253176

5

Whiz Nut

253025

6

Bumper with Stud

424056

7

Whiz Nut

253035

8

Right Angle CCW Counter Clock WiseGearbox

390021

9

Sheave

415815

10

Woodruff Key

281833

11

Truss Whiz Bolt

253177

12

Woodruff Key

281828

13

241 Vac Fan

824180

14

Lock Washer

257412

15

Hex Bolt

243331

16

Flanged Whiz Bolt

253203

17

Whiz Nut

253043

18

M2 41 Vac Housing Cover

643881

19

Hex Whiz Bolt

253173

20

100 Vac Idler Assembly

824477

21

Oilite Bearing

121756

22

Pedestal Bearing

121650

23

Idler Spacer

902426

24

Idler

393200

25

Washer

257062

26

Hex Bolt

243590

27

Handle Grip

422150

28

Extension Spring with Swivel

283819

29

Lock Nut

253930

30

Washer

257040

31

Hex Bolt

243360

32

Idler Adjustment "J" Bolt

730391

33

Nut

254450

34

Spindle Shaft Assembly

604767

35

Spacer

282622

36

Sheave

414665

37

Key Square

281575

38

Cupped Washer

257041

39

Vac Belt

382740

40

M2 41 Vac Shield

643882

41

3 Prong HD Deck Stud

252821

42

Hex Whiz Bolt

253175

43

100 Vac Baffle

720308

44

21" Medium Lift Blade

320242

45

M241 HD Vac Assembly with Blades

503158

Return to 100 Series MidMount Grasscatcher Index Return to Top
