Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

200V Series MidMount Tractors

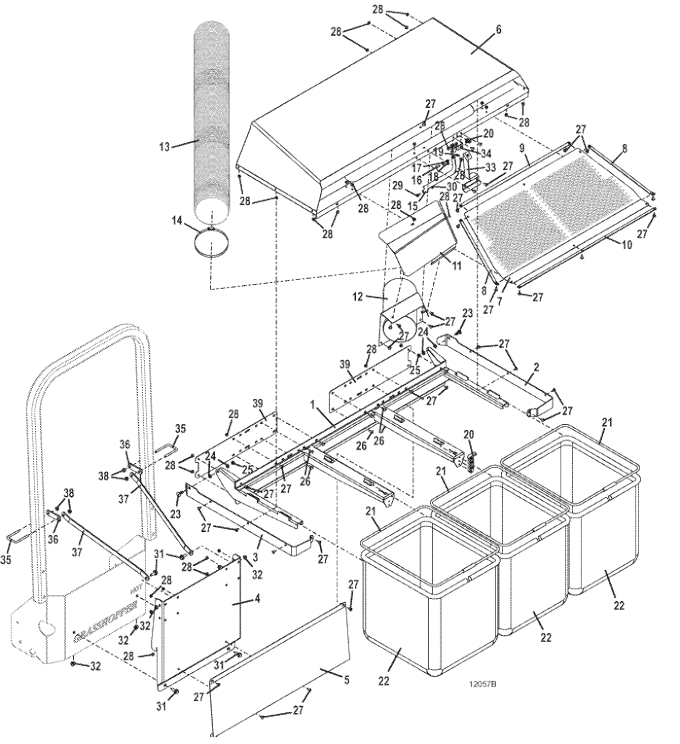

Model 12HT Catcher with Mount

Model 12HT Catcher with Mount for 200V Series Midmount Tractors

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

12HT Bagger Frame

645374

2

Right Top Guard Strap

732623

3

Left Top Guard Strap

732624

4

200V Catcher Mount Plate

729149

5

M2/200V Catcher Heat Shield

722805

6

12HT Collector Top

645835

7

8F/12F HT Fabric Screen

420008

7

8F/12F HT Metal Screen

721389

8

HT Fabric Screen Side Strap

782305

9

HT Fabric Screen Front Strap

782311

10

HT Fabric Screen Rear Strap

782361

11

12HT Inlet Deflector

721334

12

Inlet Tube

645183

13

57" Flex Hose

424408

14

6" Hose Clamp

280345

15

Hard Top Prop

754101

16

Clevis Pin

261279

17

Washer

257020

18

Torsion Spring

284407

19

Cotter Ring

260606

20

Flexible Draw Latch

281304

21

8/12HT Bag Rod

645723

22

Hard Bottom Black Vac Bag

420019

23

Carriage Bolt

247253

24

Nylon Washer

257047

25

Nylon Insert Nut

253460

26

Truss Whiz Bolt

253177

27

Truss Whiz Bolt

253176

28

Whiz Nut

253025

29

Hex Whiz Bolt

253173

30

Nylon Insert Nut

253440

31

Flanged Whiz Bolt

253203

32

Whiz Nut

253043

33

Bagger Top Support Gusset

766042

34

8/12M Top Prop Bracket

754327

35

Square U-Bolt

240278

36

U-Clamp Strap

782884

37

Grasscatcher Support Strap

755033

38

Whiz Nut

253035

39

Channel Support Plate

773090

40

12HT 200V Collector with Mount

504192

41

Nut

254450

42

Vinyl Cap

422098

43

Idler

393200

44

Hex Bolt

243565

45

Nylon Bearing

422520

46

Extension Spring with Swivel

283820

47

Idler Adjustment "J" Bolt

730391

48

Upper Vacuum Belt

382750

49

33Series Vacuum Belt Shield

644795

50

25MM Spindle Shaft Assembly

604770

51

Spacer

282630

52

Washer

257104

53

Sheave

414685

54

M2 Vacuum Belt Mount Shield

643887

55

Truss Whiz Bolt

253176

56

Lower Vacuum Belt

382733

57

M248 Vacuum Drive Shield

722831

58

Nut

254443

59

Washer

257062

60

18" Medium Lift Blade

320236

61

M252 Vacuum Assembly

503138

62

M252 Vac Assembly with Blades

503181
