Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

200V Series MidMount Tractors

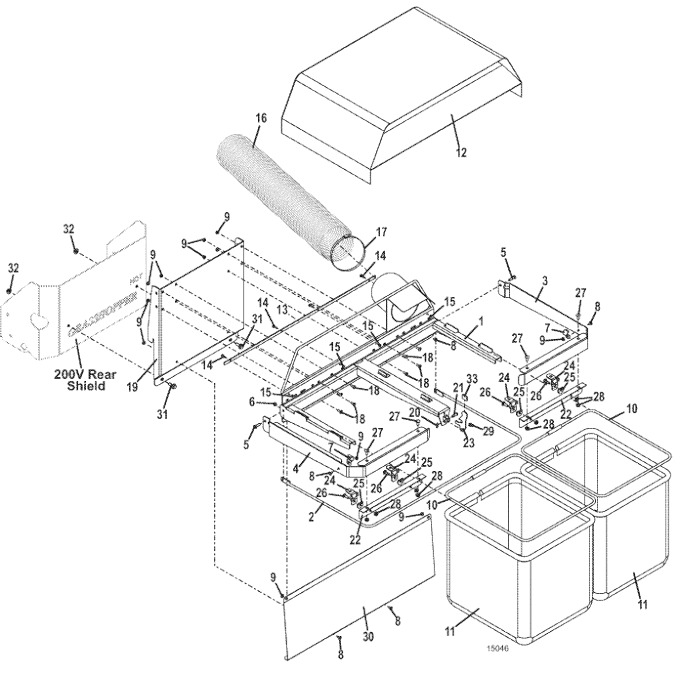

Model 8F M2 Catcher 504197

Model 8F M2 Catcher part number 504197 for 200V Series MidMount Tractors

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

8F Twin Bag Frame

645320

2

Cloth Top Hinge

643446

3

Top Right Cloth Shield

754132

4

Top Left Cloth Shield

754133

5

Hex Bolt

243205

6

Nylon Insert Nut

253450

7

Conduit Clip

180630

8

Truss Whiz Bolt

253176

9

Whiz Nut

253025

10

8/12HT Bag Rod

645723

11

Hard Bottom Black Vac Bag

420019

12

Catcher Top 2 Bag Black

420034

13

Cloth Top Hold Down Strap

782336

14

Hex WHiz Bolt

253167

15

Whiz Nut

253020

16

44" Flex Hose

424398

17

6" Hose Clamp

280345

18

Truss Whiz Bolt

253177

19

200V Catcher Mount Plate

729149

20

Cotter Ring

260606

21

Clevis Pin

261284

22

Top Right Cloth Shield Half

754060

23

Catcher Top Latch

774004

24

8F/12F Rod Clamp

766014

25

Rod Clamp Spacer

901312

26

Carriage Bolt

247135

27

Carriage Bolt

247130

28

Whiz Nut

253035

29

Torsion Spring

284407

30

M2/200V Catcher Heat Shield

722805

31

Flanged Whiz Bolt

253203

32

Whiz Nut

253043

33

Clutch Cover Bracket

422087

Return to 200 V Series Grasscatcher Index Return to Top
