Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

Model 12F Triple Bag Catcher
503193

2004 and Older

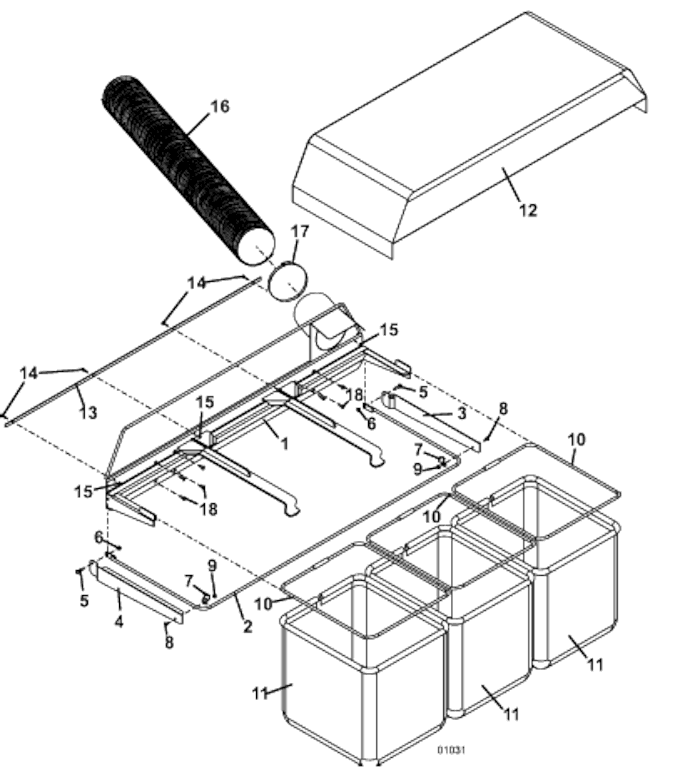

12F Triple Bag Grasscatcher Part Number 503193 Parts Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Triple Bag Frame

644299

2

3 Bag Top Hinge

644709

3

Right Cloth Top Shield

723365

4

Left Cloth Top Shield

723366

5

Hex Bolt

243205

6

Nylon Insert Nut

253450

7

Conduit Clip

180630

8

Truss Whiz Bolt

253176

9

Whiz Nut

253025

10

Twin Bag Rod

643723

11

3 Bushel Vacuum Bag

420003

12

Grasscatcher Fabric Top

420036

13

3 Bag Hold Down Cover Strap

782345

14

Hex Whiz Bolt

253167

15

Nut

254421

16

57" Flex Hose

424408

17

6" Hose Clamp

280345

18

Truss Whiz Bolt

253177

19

12F Collector

503193
