Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

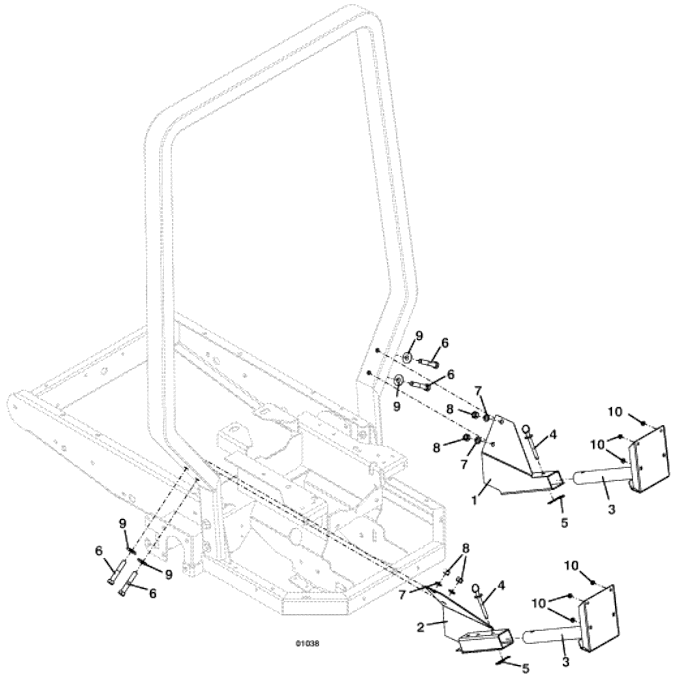

Model 8F / 12F Mount Kit with ROPS

2004 & Older

Model 8F and 12F Mount Kit with ROPS for M1 200 / 300 / 400 Series MidMount Tractors

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

M1 Right ROPS Catcher Mount

644575

2

M1 Left ROPS Catcher Mount

644576

3

Catcher Mount Tube Assembly

644147

4

Hitch Pin

260405

5

Hair Pin

260525

6

Hex Bolt

243600

7

Lock Washer

257432

8

Nut

254470

9

Washer

257060

10

Whiz Nut

253025

11

M1 7F/11F with ROPS Mount Kit

503573

Return to M1 Series 8F/12F 2004 & Older Grasscatcher Index Return to Top
