Genuine OEM Grasshopper® Mower Parts Diagrams

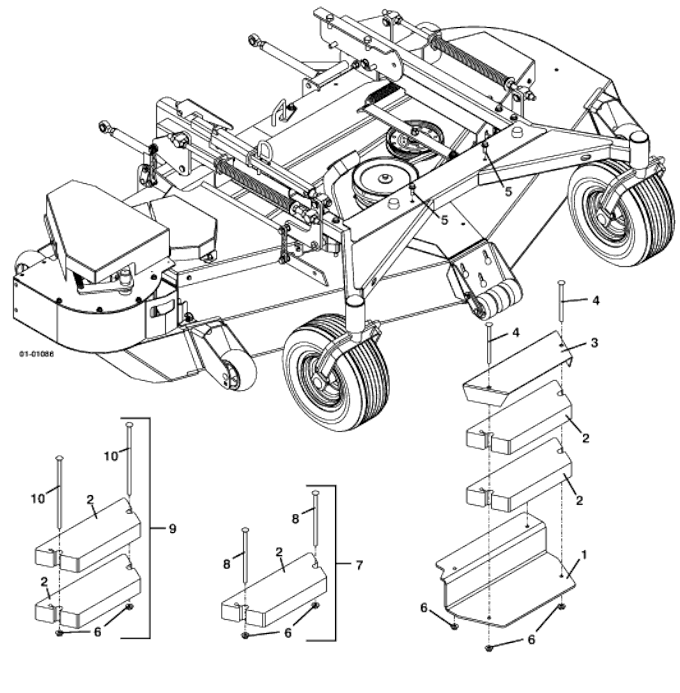

Model 8F/12F Weight Kit for 72" Decks
2004 and Older
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
M1 72 Deck Weight Mount |
726292 |
2 |
34 Lb Counterweight |
323933 |
3 |
34 Lb Weight Cover |
729514 |
4 |
Carriage Bolt |
247325 |
5 |
Flanged Whiz Bolt |
253203 |
6 |
Whiz Nut |
253043 |
7 |
M1 Weight Kit with Hardware (Includes Items 2, 6-8) |
503906 |
8 |
Carriage Bolt |
247335 |
9 |
M1 Double Weight Kit with Hardware (Includes Items 2, 6, 9-10) |
503909 |
10 |
Carriage Bolt |
247340 |
11 |
M1 72" Vacuum Double Weight Mount Kit |
503907 |
