Genuine OEM Grasshopper® Mower Parts Diagrams

8F / 12F Vacuum & Drive Assembly for M1 48

2004 and Older

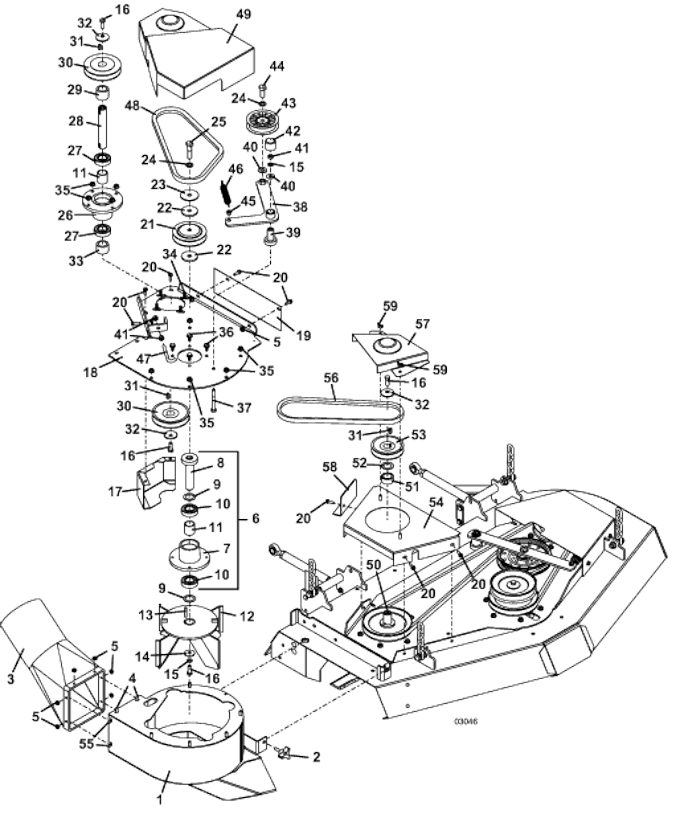

48 Inch Deck Vacuum and Drive Assembly Parts Diagram

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

33 Series Blower Housing

644339

2

3 Prong Head Deck Stud

252821

3

Hose Adapter Tube

833510

4

Truss Whiz Bolt

253177

5

Whiz Nut

253025

6

Vacuum Fan Spindle Assembly

604795

7

Vacuum Fan Spindle Housing

320522

8

Vacuum Spindle Shaft

604765

9

Washer

257106

10

25mm 2 Metal Seal Ball Bearing

110080

11

Drive Bearing Spacer

903650

12

25mm Vacuum Fan

824533

13

Square Key

281583

14

Washer

774020

15

Lock Washer

257412

16

Hex Bolt

243331

17

Drive Belt Shield W/A

644783

18

M1 Vacuum Blower Top

643853

19

M148 Vacuum Belt Guard

722637

20

Hex Whiz Bolt

253175

21

Sheave

415845

22

Fiber Washer

421200

23

Washer

257061

24

Lock Washer

257432

25

Hex Bolt

243581

26

Spindle Housing

320525

27

25mm 2 Reg Seal Ball Bearing

110081

28

M1 Vacuum Shaft

882093

29

Vacuum Spindle Spacer

902648

30

Sheave

414696

31

Square Key

281580

32

Cupped Washer

257041

33

Lower Vacuum Spindle Spacer

902645

34

Hex Flange Whiz Bolt

253193

35

Whiz Nut

253035

36

Hex Flange Whiz Bolt

253191

37

Hex Bolt

243365

38

M1 Vacuum Idler Arm

824537

39

Pedestal Bearing

121650

40

Washer

257062

41

Nut

254450

42

Vinyl Cap

422098

43

Idler

393200

44

Hex Bolt

243565

45

Nylon Bearing

422520

46

Extension Spring with Swivel

283820

47

J Bolt Idler Adjustment

730391

48

Upper Vacuum Belt

382750

49

33S Vacuum Belt Shield

644795

50

25MM Spindle Shaft Assembly

604770

51

Spacer

282630

52

Washer

257104

53

Sheave

414685

54

M148 Vacuum Belt Shield Mount

644764

55

Truss Whiz Bolt

253176

56

Lower Vacuum Drive Belt

382733

57

M148 Vacuum Drive Shield

644796

58

Deck Stop for M148 with Blower

754148

59

Nut

254443
