Genuine OEM Grasshopper® Mower Parts Diagrams
M1 Series MidMount Tractors

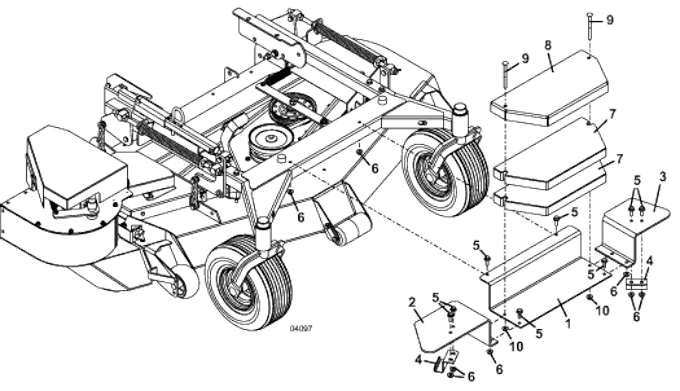

Model 12HT Weight Kit for 61" Decks
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
M1 61 Weight Kit Mount |
724697 |
2 |
Right M1 61 Weight Kit Gusset (Used in Kit #503897) |
724631 |
2 |
Right M1 61 Weight Kit Gusset (Used in Kit#503893) |
726216 |
3 |
Left M1 61 Weight Kit Gusset (Used in Kit #503897) |
724632 |
3 |
Left M1 61 Weight Kit Gusset (Used in Kit #503893) |
726217 |
4 |
M1 Weight Kit Clamp |
729337 |
5 |
Flanged Whiz Bolt |
253203 |
6 |
Whiz Nut |
253043 |
7 |
Counterweight |
323951 |
8 |
50 Lb Weight Cover |
729691 |
9 |
Carriage Bolt |
247310 |
10 |
Whiz Nut |
253043 |
11 |
M1 61" Weight Mount Kit |
503897 |
12 |
Model 16 M1 61 Weight Mount Kit |
503893 |
13 |
Model 16 100Lb Counterweight Group |
504166 |
