Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

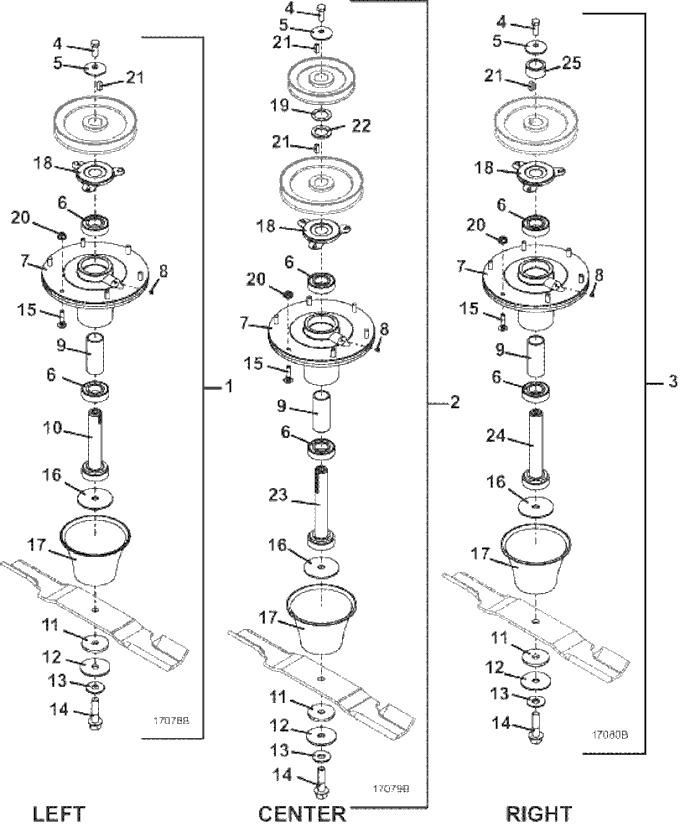

526V • Blade Spindle Assembly

2018

blade spindle

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Left Blade Spindle Assembly - 3252

623740

2

Center Blade Spindle Assembly - 3252

623741

3

Right Blade Spindle Assembly - 3252

623742

4

Hex Bolt

243331

5

Cupped Washer

257041

6

Ball Bearing

110081

7

Aluminum Spindle Housing Assembly

604413

8

Set Screw

259305

9

Deep Bearing Spindle Spacer

903643

10

Spindle Shaft Assembly

604775

11

Washer - Fiber

421200

12

Washer

257061

13

Hardened Washer

257057

14

Grade 8 Flange Hex Bolt

243583

15

Round Head Ribbed Neck Bolt

247141

16

Washer

257055

17

Deflector Cone

423680

18

Shield Bearing

721167

19

Washer

257106

20

Whiz Nut

253035

21

Square Key

281580

22

Washer

257107

23

Spindle Shaft Assembly

605771

24

Spindle Shaft Assembly

604774

25

Spacer

282630
