Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

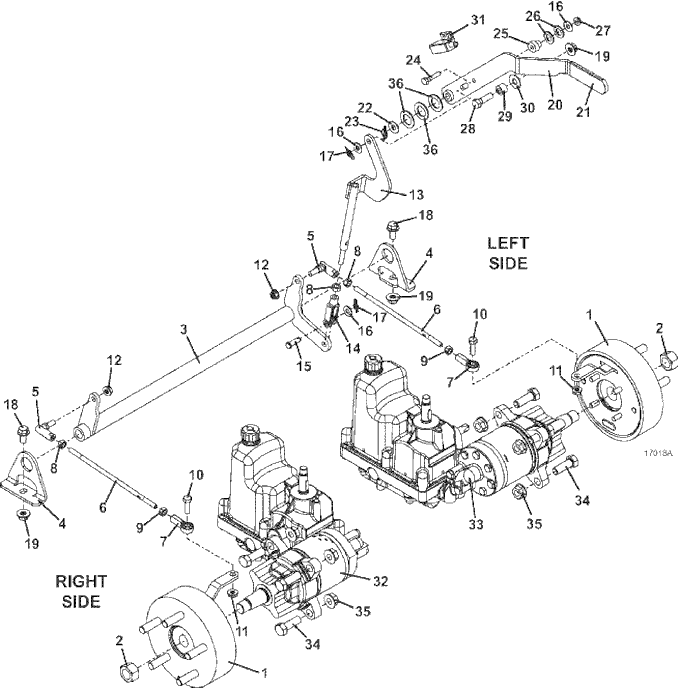

526V • Brake & Linkage Assembly

2018

brake and linkage

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Brake Assembly

481147

2

Lock Nut

253992

3

Brake Pivot Tube

644593

4

Brake Pivot Mount

725584

5

Righthand Thread Ball Joint

265615

6

8.125 Right/Left Steering Rod

780176

7

Left Rod End - Female

265651

8

Nut

254441

9

Nut

254444

10

Hex Bolt

243205

11

Whiz Nut

253035

12

Whiz Nut

253038

13

Brake Linkage Arm

645009

14

Clevis Yoke

265537

15

Clevis Pin

261284

16

Washer

257020

17

Cotter Ring

260606

18

Whiz Bolt

253200

19

Whiz Nut

253043

20

Brake Lever - 700/900

644035

21

Handle Grip

422150

22

Washer

257030

23

Cotter Ring

260608

24

Hex Bolt

243030

25

Brake Lever Spacer

881130

26

Washer

257063

27

Whiz Nut

253025

28

Hex Bolt

243335

29

Spacer

902280

30

Washer

257040

31

Brake Interlock Switch

183894

32

Left Integrated Transmission

391490

33

Right Integrated Transmission

391491

34

Hex Bolt

243570

35

Spiral Flange Lock Nut

253067

36

14 Gauge Bushing Washer

257091
