Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

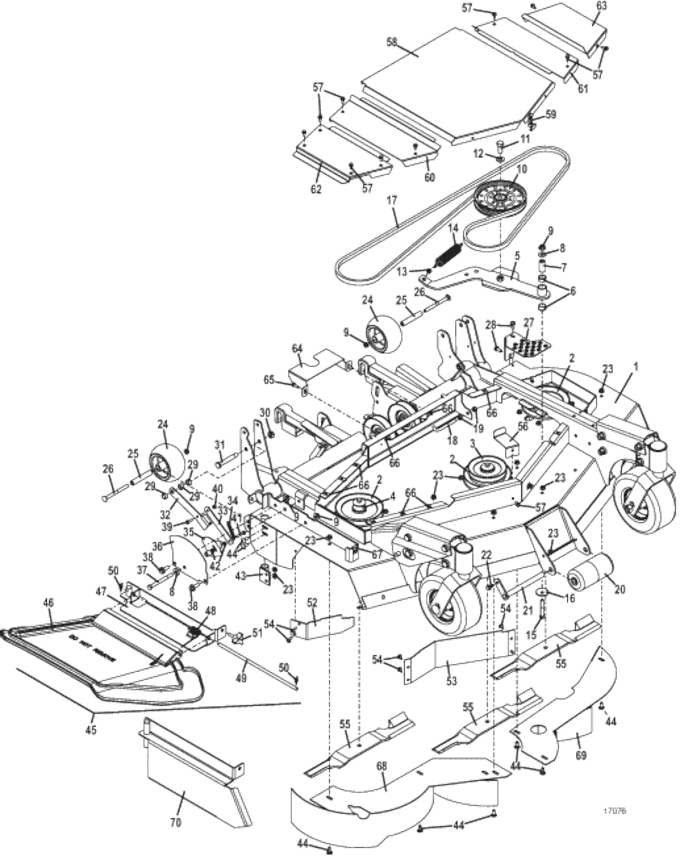

526V • Deck Assembly

2018

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

3252 Deck

645247

2

Sheave

415892

3

Big Split Sheave

415902

4

Spacer

282630

5

Idler Arm

824460

6

Oilite Bearing

121756

7

Bearing Pivot Shaft

881105

8

Washer

257040

9

Whiz Nut

253043

10

Idler

393250

11

Hex Bolt

243565

12

Washer

257062

13

Nylon Bearing

422520

14

Extension Spring

283848

15

Hex Bolt

243355

16

Cupped Washer

257041

17

Belt

382082

18

"J" Bolt Idler Adjustment

730391

19

Nut

254450

20

2 Piece Center Roller Assembly

603725

21

Roller Lock Pin

644512

22

Flange Whiz Hex Bolt

253192

23

Whiz Nut

253035

24

Wheel - Anti-Scalp Center Hub

484230

25

Tube - Bearing

942137

26

Carriage Bolt

247310

27

Tread Plate

724113

28

Hex Bolt

243197

29

Spacer - Actuator Stop

902282

30

Lock Nut

253930

31

Hex Bolt

243609

32

Linkage - Indicator Electric Lift

729332

33

Strap - Indicator Electric Lift

729331

34

Extension Spring

283762

35

Height Indicator - E/Lift

644319

36

Plate - Cutting Height Decal

773141

37

Hex Bolt

243385

38

Flange Whiz Bolt

253203

39

Hex Bolt

243018

40

Nylon Insert Nut

253440

41

Hex Bolt

243030

42

Whiz Nut

253025

43

Mount - Pivot Vac Housing

643632

44

Carriage Bolt

247130

45

Flex Discharge Shield Assembly

604317

46

Flex Discharge Shield

422042

47

Discharge Shield Mount

644570

48

Torsion Spring

284406

49

Pin - Flex Discharge Shield

780650

50

Cotter Ring

260608

51

HD 3 Prong Deck Screw

252821

52

Shroud - Discharge Deflect

729686

53

Auxiliary Front Shroud

724588

54

Truss Whiz Bolt

253177

55

18" High-Lift Notch Blade

320239

-

18" Medium Lift Blade

320236

-

18" Contour Blade

320238

-

18" Extreme High-Lift Blade

320241

56

Retainer Belt

722138

57

Whiz Hex Bolt

253173

58

Shield - Belt Center

751375

59

Rubber Draw Latch

281300

60

Right Belt Shield

751376

61

Left Belt Shield

751377

62

3452 Right Belt Shield

722702

63

3452 Left Belt Shield

722703

64

Shield

751374

65

Hex Whiz Bolt

253175

66

Speed Nut

254431

67

Speed Nut

254448

68

52 - Right Mulch Plate

644608

69

52 - Left Mulch Plate

644609

70

End Cap - Mulch

644058

71

3252 Deck Decal Set

605393
