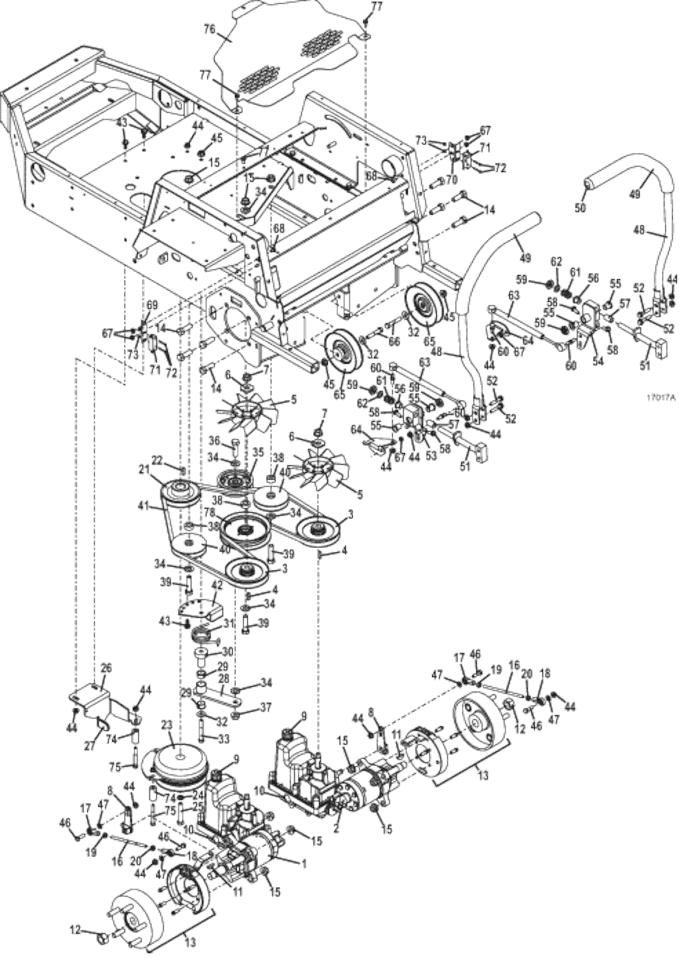

Genuine OEM Grasshopper® Mower Parts Diagrams

526V • Drive & Steering Assembly

2018

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Left Integrated Transmission

391490

2

Right Integrated Transmission

391491

3

Pulley

130630

4

Square Key

281668

5

H2 & T Hydro Fan

130431

6

Fan Spacer

130632

7

Flanged Nut

253070

8

Control Lever

130618

-

Return Spring

130619

9

Seal Ring

130611

-

Breather/Dipstick

130610

10

Filter

130605

-

Filter Plug w/O-Ring

130606

11

Woodruff Key

281845

12

Lock Nut

253992

13

Brake Assembly

481147

14

Hex Bolt

243570

15

Flange Spiral Lock Nut

253067

16

Steering Link Rod

780151

17

Rod End Right Female

265650

18

Rod End Left Female

265651

19

Nut

254441

20

Nut

254444

21

Sheave

415545

22

Square Key

281582

23

Electric Clutch 1" Shaft

388750

24

Lock Washer

257422

25

Hex Bolt

243470

26

Bracket

725658

27

Clutch Bracket Cover

422088

28

Idler Arm Assembly

824478

29

Oilite Bearing

121756

30

Pedestal Bearing

121650

31

Torsion Spring

284428

32

Washer

257040

33

Hex Bolt

243360

34

Washer

257062

35

Idler

393195

36

Hex Bolt

243580

37

Whiz Nut

253066

38

Spacer

902313

39

Hex Bolt

243580

40

Idler

393325

41

Belt Ax - 80.35 EL EPDM

381930

42

Belt Tensioner Bracket

729733

43

Flange Whiz Hex Bolt

253192

44

Whiz Nut

253035

45

Whiz Nut

253043

46

Hex Bolt

243205

47

Washer

257032

48

Steering Lever Assembly - Wide Standard

604778

49

Handle Grip

422179

50

.75 ID Vinyl Cap

422095

51

Steering Lever Adjustment Mount

643926

52

Flange Whiz Hex Bolt

253195

53

Right Steering Pivot w/Stop & Bearings

604771

54

Left Steering Pivot w/Stop & Bearings

604772

55

Sleeve Bearing w/Flange

422559

56

Sleeve Bearing w/Flange

422556

57

Sleeve Bearing

422557

58

Hex Bolt

243197

59

Nylon Insert Nut

253470

60

Ball Stud

265680

61

Compression Spring

283324

62

Washer

257063

63

Reverse Damper w/Ball Socket

285032

64

Damper Mount Bracket

766172

65

Idler

393376

66

Hex Bolt

243352

67

Whiz Nut

253025

68

Truss Whiz Bolt

253176

69

Rt Steering Switch Mount

720160

70

Lt Steering Switch Mount

720161

71

Lever Switch

183860

72

Machine Screw

250318

73

Nut

254400

74

Spacer - 500V Belt Retainer

902336

75

Hex Bolt

243235

76

Shield

751054

77

Hex Whiz Bolt

253173

78

Idler

393231
