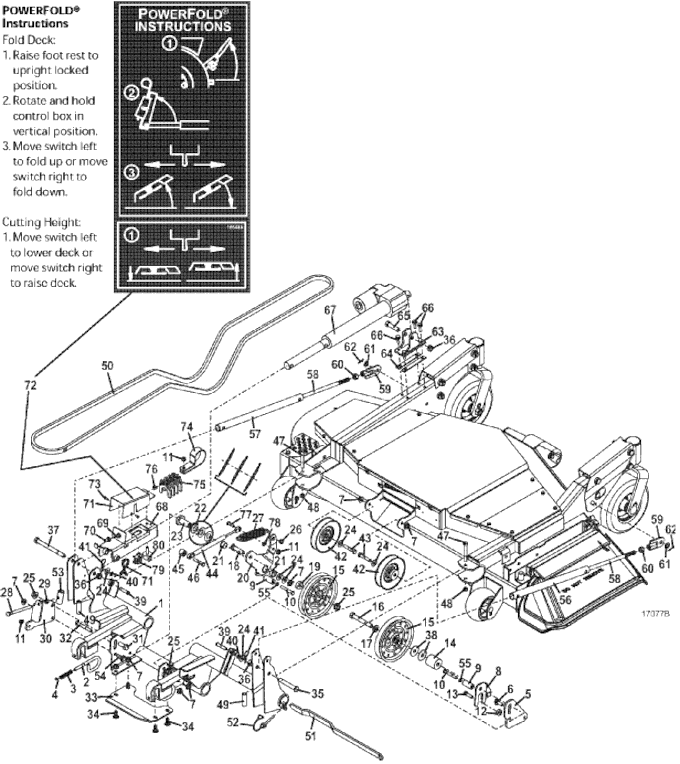

526V • Lift Arm Assembly

2018

Lift Arm

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

3252 Lift Arm Assembly

604542

2

Deck Mount Latch Pin

730433

3

Compression Spring

283285

4

External Retainer

263490

5

Plate

776101

6

Whiz Flange Bolt

253203

7

Whiz Nut

253043

8

Bracket

645116

9

Spacer - 500V Belt Retainer

902336

10

Grade 8 Hex Bolt

243230

11

Whiz Nut

253035

12

Spacer - Coupling

902318

13

Hex Bolt

243335

14

Spacer

884307

15

Idler

393250

16

Hex Bolt

243615

17

Washer

257062

18

Bolt

830065

19

Spacer - Tilt Latch

902292

20

Idler Arm Assembly - 524V

824475

21

Oilite Bearing

121756

22

Spring Washer

257319

23

Pedestal Bearing

121651

24

Washer

257040

25

Nut - Flange Spiral Lock

253067

26

Nylon Bearing

422520

27

Spring - Extension

283848

28

Hex Bolt

243395

29

Nut

254450

30

Belt Idler Bracket

726316

31

Hex Bolt

243560

32

Hex Bolt

243360

33

Sheave Guard

725240

34

Carriage Bolt

247253

35

Hex Bolt

243609

36

Lock Nut

253930

37

Hex Bolt

243635

38

Washer

257072

39

Clevis Pin

261362

40

Push-On Retainer

262950

41

Hair Pin

260523

42

Idler

393376

43

Hex Bolt

243352

44

Damper

285040

45

Drive Spacer

902328

46

Hex Bolt

243220

47

Hex Bolt

243365

48

Lock Nut

253890

49

Roller Mount Spacer

902284

50

Belt

382103

51

3252 Traction Lever Tool

726124

52

Linch Pin

261624

53

Adjustment Spring

881925

54

Hex Bolt - Thin Head

243329

55

Lock Washer

257402

56

3452 Right Lift Linkage

644472

57

3452Lt/61Rt Lift Linkage Tube

644547

58

3452/61 Round Head Bolt

243667

59

Bracket - Lift Rod

644068

60

Nut

254470

61

Washer

257063

62

Cotter Pin

260650

63

Actuator Mount - 34 E/Lift

644056

-

Threaded Plate - 34 Actuator

776089

64

Spacer-E/Lift Actuator Mount

900142

65

Hex Bolt

243580

66

Flange Whiz Hex Bolt

253193

67

12V Actuator

180035

68

Electric Lift Switch Mount

644805

69

Toggle

184084

70

Boot - Toggle Switch

425200

71

Shield - Switch Mount Electric Lift

722005

72

Decal Pictorial - Powerfold

165430

73

Hex Machine Screw

250169

74

Spacer Mount - Power Fold Height Adj

732315

75

Spacer - Powerfold Height Adj

423697

76

.25 Thk Spacer

902297

77

Hex Bolt

243205

78

Washer

257032

79

Switch - Snap Mt Plunger Spst Nc

183867

80

Bumper - W/Stud

424056

81

Torsion Spring

284423

Return to 526V Index Return to Top
