Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

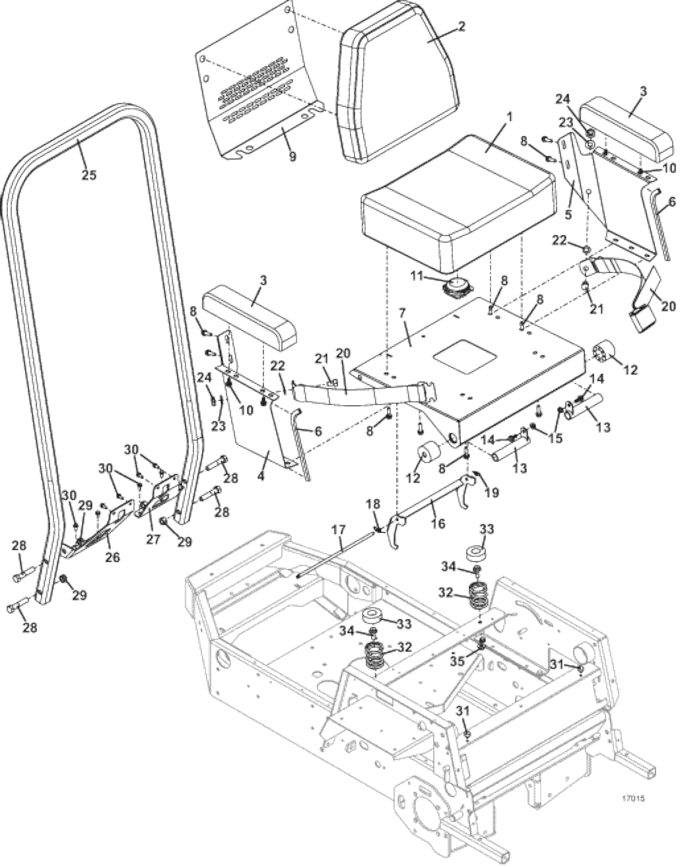

526V • OPS & Seat Assembly

2018

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Combo Seat Cushion

321529

2

Combo Back Cushion w/Logo

321530

3

Cordura Contoured Armrest

321523

4

Raised Backrest Right Seat Side

723433

5

Raised Backrest Left Seat Side

723434

6

Seat Edge Trim

822630

7

Seat Mount

644872

8

Hex Flange Whiz Bolt

253193

9

Seat Rein Raised Backrest

722884

10

Flange Whiz Hex Bolt

253191

11

Twist-In Seat Switch

183871

12

Seat Isolator

424095

13

Pin - Seat Hinge

644618

14

Whiz Flange Hex Bolt

253192

15

Whiz Nut

253035

16

600 Dual Seat Latch

754234

17

Pivot Pin - Seat Latch

730230

18

Torsion Spring

284408

19

Cotter Ring

260606

20

Non-Retractable Seat Belt

324200

21

Hex Bolt

243551

22

Washer

257063

23

Washer

257062

24

Nylon Insert Nut

253470

25

OPS Tube - 600

324107

26

Right Gusset

729306

27

Left Gusset

729307

28

Hex Bolt

243591

29

Lock Nut

253930

30

Truss Whiz Bolt

253176

31

Rubber Bumper

424015

32

Compression Spring

283516

33

Cap - Seat Spring

422127

34

Flange Whiz Bolt

253203

35

Whiz Nut

253043
