Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

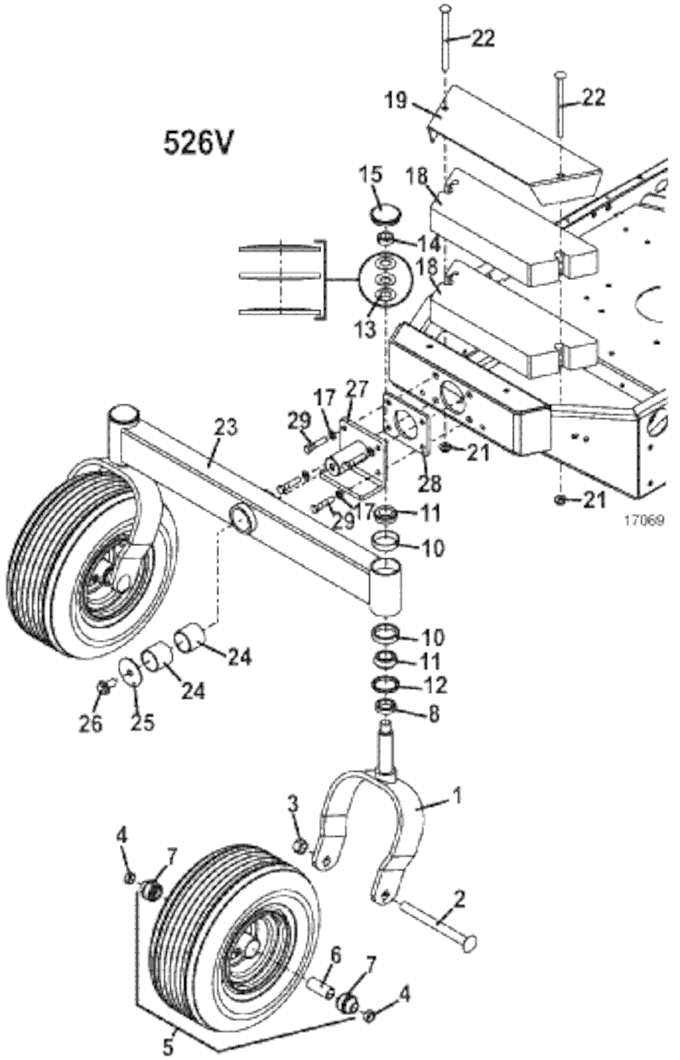

526V • Tail Wheel & Weights

2018

tail wheel weights

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Tail Wheel Fork Tapered Bearing

645221

2

Carriage Bolt

247726

3

Lock Nut

253970

4

Axle Spacer

902422

5

Rear Wheel & Tire Assembly w/DP Bearings

603975

-

13 x 6.50 x 6 Rib Tire

482355

-

Wheel

483306

6

Axle Spacer

423750

7

Ball Bearing

120048

8

Spacer

282615

9

Pivot Housing Assembly - RR Fork

604596

10

Bearing Cup

123522

11

Taper Bearing

122522

12

Seal

125855

13

Spring Washer

257320

14

Nylon-Top Jam Lock Nut

254505

15

Domed Dust Cap

481434

16

GR 8 Hex Bolt

243334

17

Lock Washer

257412

18

Counterweight - 34 lb

323933

19

Weight Cover - 34 lb

729514

20

Carriage Bolt

247335

21

Whiz Nut

253043

22

Carriage Bolt

247325

23

Dual Wheel Beam

824510

24

Reamed Oilite Bearing

833275

25

Washer

257061

26

Whiz Bolt

253243

27

Rear Axle Pivot Assembly

604597

28

Spacer

776233

29

Hex Bolt

243342
