Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

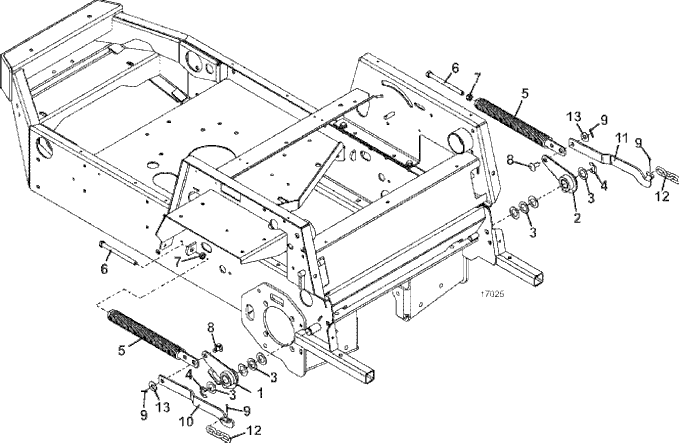

526V • Traction Kit

2018

traction kit

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Right Rocker

603696

-

Oilite Bearing

121764

2

Left Rocker

603697

-

Oilite Bearing

121764

3

18 Gauge Bushing Washer

257092

4

External Retainer

263529

5

Spring & Plug Nut Assembly

604762

6

Hex Bolt

243395

7

Nut

254450

8

Clevis Pin

261336

9

Cotter Pin

260648

10

616T Right Lift Strap

725492

11

616T Left Lift Strap

725493

12

3 Links Lift Chain

820317

13

Washer

257040
