Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

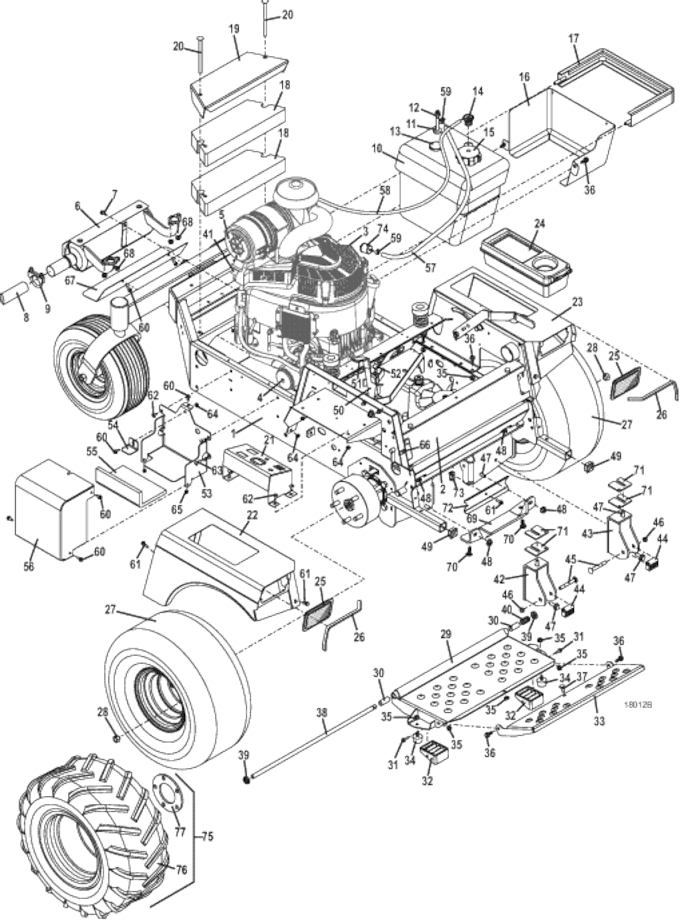

526V • Tractor Assembly

2018

tractor assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

500V Lower Frame

643877

2

524V Upper Frame

643879

3

26HP Vanguard Engine

100155

4

Briggs Oil Filter

100803

5

Filter - Air Outer - HD

100936

-

Filter - Air Inner - HD

100937

6

20/24HP Briggs & Stratton Vertical Muffler

101197

-

Briggs & Stratton Vertical Exhaust Gasket

101043

7

Hex Bolt

243016

8

524V Exhaust Tube

942409

9

Exhaust Clamp

101356

10

4 X .25 FM Gas Tank Assembly

605792

-

Refueling Warning Decal

165720

11

Fuel Tube Bushing

101875

12

Fuel Tube

363925

13

Intank Fuel Gauge

141142

-

Grommet

424275

14

Fuel Tank Valve Kit

606830

15

Internal Sealed Tether Fuel Cap

100212

16

Tank Shield

751351

17

4.3 Tank Mount

645826

18

34 lb. Counterweight

323933

19

34 lb. Weight Cover

729514

20

Carriage Bolt

247325

21

Console w/Decal

693118

22

600T Rt Fender with Decals

693196

23

600T Lt Fender with Decals

693197

24

Tool Box

422040

25

Hole Plug Work Lamp

422079

26

Trim

822632

27

Wheel & Turf Tire

483923

-

Tire

482462

-

Wheel

483419

28

Lug Nut

254472

29

500V Adjustable Foot Platform Assembly

604349

30

Nylon Bearing

422615

31

Hex Bolt

243026

32

Footrest Isolator Block

424100

33

Foot Platform Extension

643306

34

Rubber Bumper

424052

35

Whiz Nut

253035

36

Hex Whiz Flange Bolt

253192

37

Carriage Bolt

247130

38

Footrest Pivot Rod

780655

39

Nylon Insert Nut

253470

40

Compression Spring

283312

41

Dust Ejector

100204

42

Right Deck Mount

643100

43

Left Deck Mount

643101

44

Bushing - Deck Mount

282575

45

Special Carriage Bolt

247280

46

Nylon Insert Nut

253460

47

Flange Whiz Bolt

253203

48

Whiz Nut

253043

49

Square Plastic 1" ID Plug

422065

50

Throttle/Choke Mount Assembly

605823

-

Control Cable Assembly

323643

-

Heavy Duty Throttle Lever Stop

722736

51

Handle Grip

422150

52

Mechanical Choke

142247

53

Battery Box - G2 AC

644099

54

Battery Clamp

729001

55

Battery Tray Pad

427273

56

Cover - Battery AC

644162

57

Fuel Hose

821770

58

Fuel Vapor Hose

821764

59

Spring Hose Clamp

280260

60

Whiz Hex Bolt

253173

61

Whiz Hex Bolt

253175

62

Truss Whiz Bolt

253176

63

Truss Whiz Bolt

253177

64

Whiz Nut

253025

65

Nylon Insert Nut

253440

66

Speed Nut

254431

67

Heat Shield

751040

68

Hex Whiz Nut

274146

69

Sheave Guard

645399

70

Carriage Bolt

247253

71

Spacer - Deck Mts

783284

72

Belt Retainer

722136

73

Nut

254435

74

In-Line Briggs Fuel Filter

366560

75

Tire Set - 20X8X10 Bar 500B

504244

76

Right Wheel & Tire Bar

483916

-

Tire Bar

482463

-

Wheel

483419

-

Left Wheel & Tire Bar

483917

77

Wheel Spacer - 5 Bolt - 1/4"

776295

78

526V Decal Set

605392
