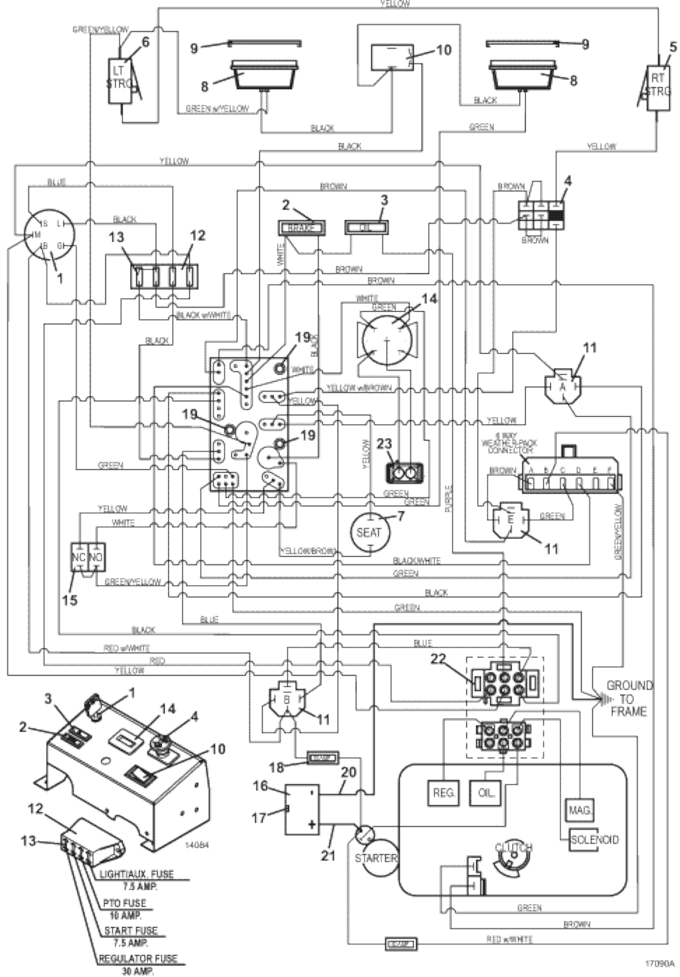

526V • Wiring & Lights Diagram

2018

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Briggs & Stratton / Kohler Ignition Switch w/Key

183806

-

Ignition Key with Cover

101101

-

Nut

254498

-

Plastic Panel

422078

2

Brake Light Indicator

182326

3

Oil Indicator Light

182327

4

Push/Pull Switch

183925

4

Connector - 9Way

184942

5

Lever Switch

183860

-

Steering Switch Mount - Right

720160

6

Lever Switch

183860

-

Steering Switch Mount - Left

720161

7

Twist-In Seat Switch

183871

8

LED Flood Worklamp

182261

9

Snap Mount Worklamp Bezel

182251

10

Rocker Switch

184179

11

12V DC Relay with Mount

184271

12

Fuse Block

181720

-

Fuse ID Decal

162320

-

Fuse Block Cover

181721

13

30 amp Auto ATC Fuse

181470

-

7.5 amp Auto ATC Fuse

181460

-

10 amp Auto ATC Fuse

181462

14

Snap In Hour Meter

141551

15

Brake Interlock Switch

183894

16

12 Volt Wet Battery

180125

-

Battery Box - G2 AC

644099

-

AC Battery Cover

644162

17

Battery Clamp

729001

18

Inline Auto Fuse Holder

181735

-

30 Amp Fuse - Auto ATC

181470

19

PC Board Support Spacer

423690

20

16" Black Battery Cable

180277

21

35" Red Battery Cable

180335

-

Boot - Alternator Terminal Red

425215

-

Starter Terminal Boot

425219

22

6 Terminal Connector (AMP)

184911

-

Pin Mate N-Lock

181768

23

2 Terminal Connector

184907

-

Fuel Sender

141235

24

526V Wire Assembly

606858

25

Console Decal

161092
