Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

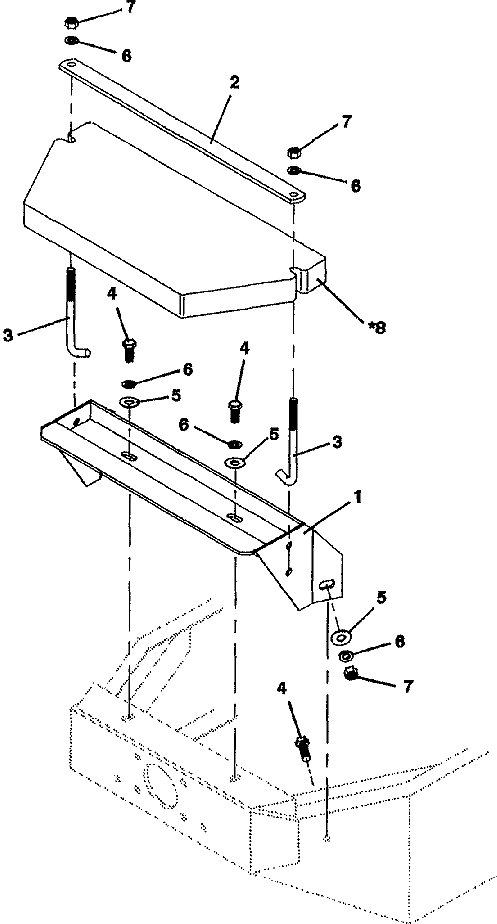

614 • Counterweight Mount Kit

1991

Counterweight Mount Kit

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Weight Mount

643915

2

50 lb. Weight Cover

729691

3

Hook Bolt

240151

4

Hex Bolt

243330

5

Washer

257040

6

Lock Washer

257412

7

Nut

254450

8

50 lb. Counterweight

503218

9

Counterweight Mount Kit

503220

return to 614 index return to top of page
