Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

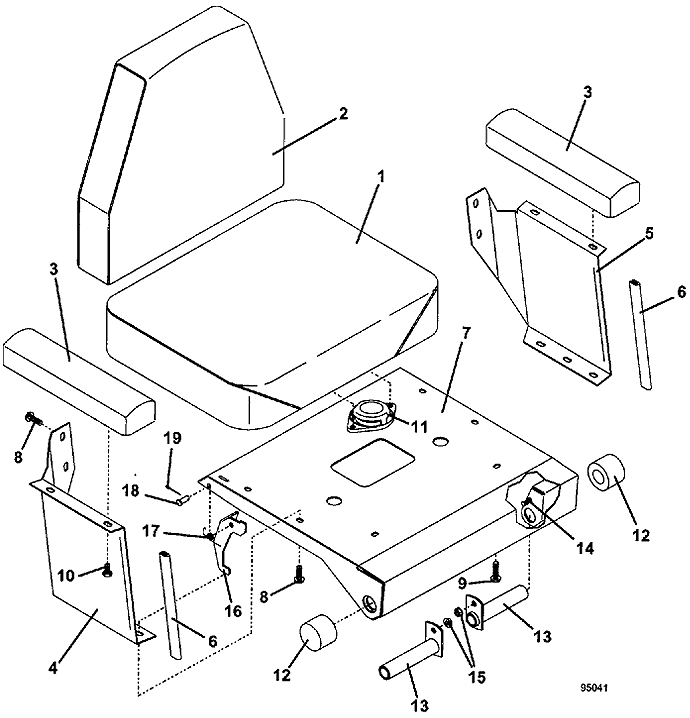

616 • Seat Assembly

1997

Seat Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Formed Seat Cushion

321515

2

Back Cushion

321511

3

Seat Armrest

321501

4

right Side Seat Member

724310

5

left Side Seat Member

724311

6

Seat Edge Trim

822630

7

600 Seat Isolator (Platform)

643920

8

Hex Flange Whiz Bolt

253193

9

Hex Whiz Bolt

253194

10

Hex Flange Whiz Bolt

253191

11

Seat Switch

183870

12

Seat Isolator

424095

13

Seat Hinge Pin

644618

14

Hex Flange Whiz Bolt

253192

15

Whiz Nut

253035

16

Seat Latch

729063

-

Hex Bolt

243330

-

Washer

257040

17

Torsion Spring

284408

18

Clevis Pin

261280

19

Cotter Pin

260648

20

600 Seat Assembly

604730
