Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

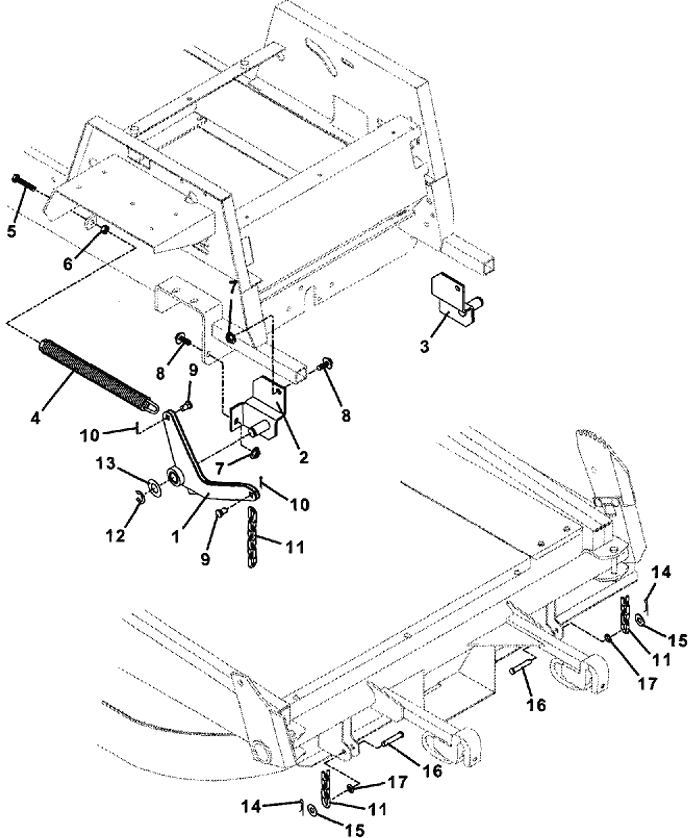

616 • Traction Kit

1997

Traction Kit

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Rocker & Bearing Assembly

603715

-

Oilite Bearing

121766

2

Right 600 Traction Kit Bracket

643146

3

Left 600 Traction Kit Bracket

643147

4

Traction Kit Spring Assembly

605760

5

Hex Bolt

243361

6

Nut

254450

7

Whiz Nut

253043

8

Whiz Flange Bolt

253203

9

Clevis Pin

261336

10

Cotter Pin

260648

11

Lift Chain with 6 Links

820322

12

External Retainer

263529

13

18 Gauge Bushing Washer

257092

14

Hair Pin

260523

15

Washer

257040

16

Clevis Pin

261362

17

Push-On Retainer

262950

18

600 Conversion Traction Kit

503885

Return to 616 Index Return to Top of Page
