Genuine OEM Grasshopper® Mower Parts Diagrams

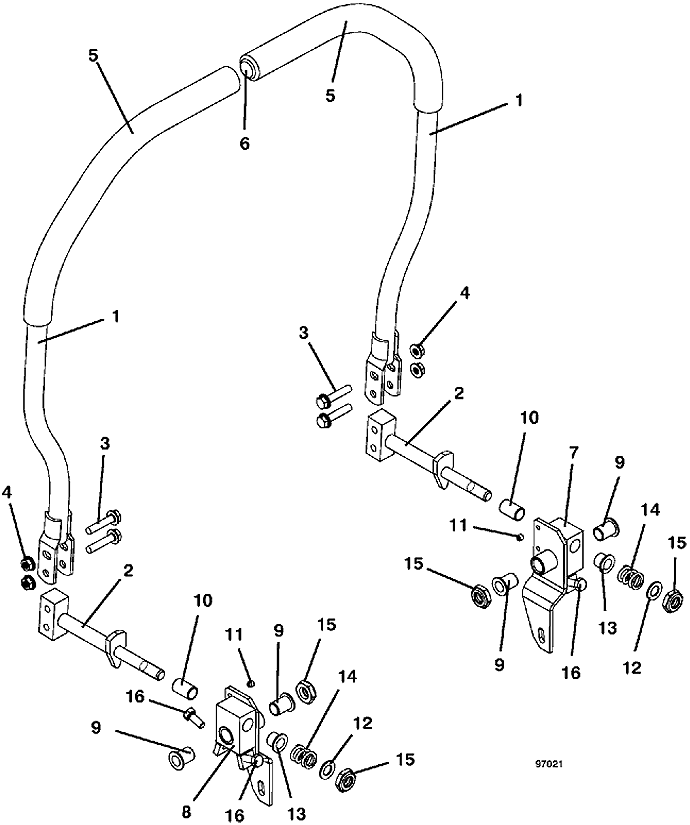

618 • Steering Assembly
1999
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Wide STD Steering Lever Assembly |
604777 |
2 |
Adjustable Steering Lever Mount |
643926 |
3 |
Hex Flange Whiz Bolt |
253195 |
4 |
Whiz Nut |
253035 |
5 |
Handle Grip |
422179 |
6 |
.75 ID Vinyl Cap |
422095 |
7 |
right Steering Pivot with Stop & Bearings |
604771 |
8 |
left Steering Pivot with Stop & Bearings |
604772 |
9 |
Sleeve Bearing with Flange |
422559 |
10 |
Sleeve Bearing |
422557 |
11 |
Set Screw |
259305 |
12 |
Washer |
257063 |
13 |
Sleeve Bearing w/Flange |
422556 |
14 |
Compression Spring |
283324 |
15 |
Nylon Insert Nut |
253470 |
16 |
Hex Bolt |
243197 |
