Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

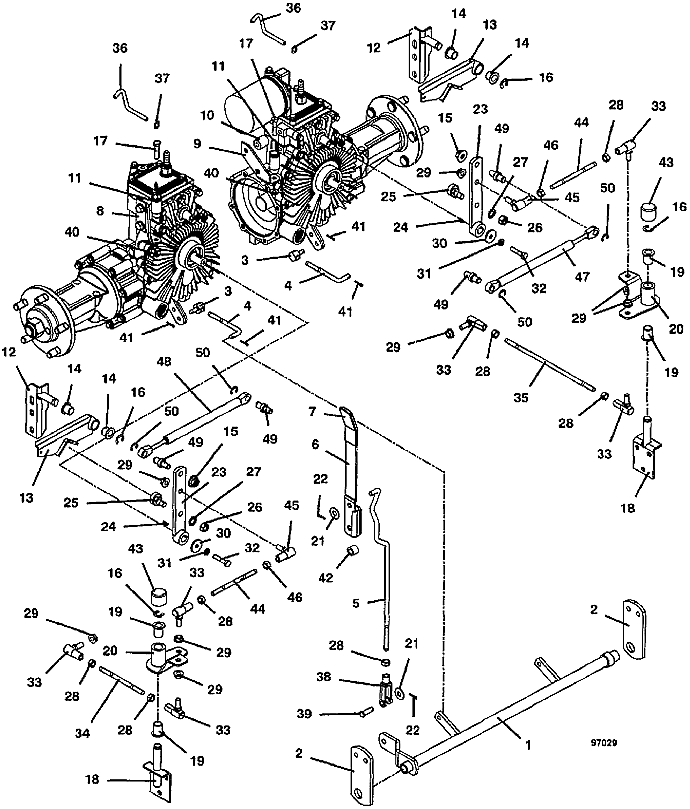

618 • Drive Linkage Assembly

2001

Drive Linkage Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

600S Brake Pivot Tube

643820

2

Brake Pivot Rod Mount

783179

3

Brake Linkage Pin

880924

4

Brake Linkage Rod

730256

5

600 Brake Linkage Rod

730233

6

600 Brake Lever

729060

7

Handle Grip

422150

8

Neutral Return Spring Bracket

729072

9

right Neutral Spring Bracket

729037

10

Drive Mount Plate Spacer

902307

11

Extension Spring

283823

12

Neutral Return Pivot Mount

643603

13

Neutral Return Arm with Bearing

603084

14

Sleeve Bearing with Flange

422556

15

Whiz Nut

253043

16

External Retainer

263500

17

Hex Bolt

243030

18

Control Linkage Pivot

643627

19

Sleeve Bearing with Flange

422559

20

Linkage Pivot with Bearing

603567

21

Washer

257030

22

Cotter Pin

260624

23

Extended Control Arm

643059

24

Woodruff Key

281823

25

Eccentric Roller Assembly

603726

26

Nut

254450

27

Star External Washer

257410

28

Nut

254441

29

Whiz Nut

253038

30

Flat Washer

774012

31

Lock Washer

257392

32

Hex Bolt

243030

33

righthand thread Ball Joint

265615

34

Ball Joint Rod

780160

35

Ball Joint Rod

780166

36

Dump Valve Lever

730088

37

Push-On Retainer

262934

38

Clevis Yoke

265537

39

Clevis Pin

261284

40

Whiz Nut

253025

41

Cotter Pin

260624

42

Brake Lever Spacer

423705

43

1" ID Vinyl Cap

422095

44

righthand thread Linkage Rod

780161

45

lefthand thread Ball Joint

265616

46

Nut

254444

47

right Damper

285025

48

left Damper

285030

49

.25 Shock Mount Pin

881103

50

External Retainer

263490
