Genuine OEM Grasshopper® Mower Parts Diagrams

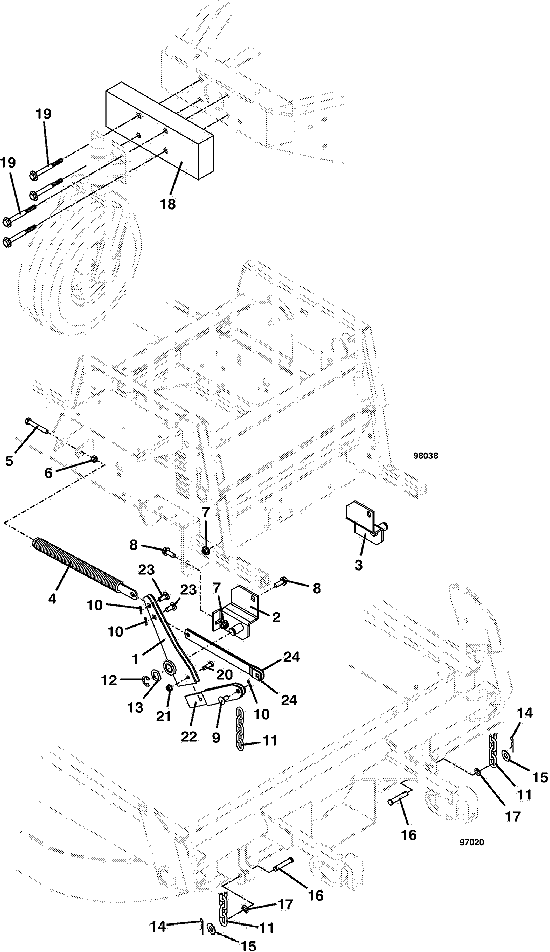

618 • Traction Kit
2001
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Rocker for 600SL Decks |
603719 |
- |
Oilite Bearing |
121764 |
2 |
right Weight Transfer Bracket |
644104 |
3 |
left Weight Transfer Bracket |
644105 |
4 |
Traction Kit Spring Assembly |
605760 |
5 |
Hex Bolt |
243361 |
6 |
Nut |
254450 |
7 |
Whiz Nut |
253043 |
8 |
Whiz Flange Bolt |
253203 |
9 |
Clevis Pin |
261336 |
10 |
Cotter Pin |
260648 |
11 |
Lift Chain |
820320 |
12 |
External Retainer |
263529 |
13 |
18 Gauge Bushing Washer |
257092 |
14 |
Hair Pin |
260523 |
15 |
Washer |
257040 |
16 |
Clevis Pin |
261362 |
17 |
Push-On Retainer |
262950 |
18 |
600 Series Counterweight |
783810 |
19 |
Whiz Bolt |
253212 |
20 |
Hex Flange Whiz Bolt |
253193 |
21 |
Whiz Nut |
253035 |
22 |
Front Rocker Arm |
644052 |
23 |
Clevis Pin |
261339 |
24 |
Lift Strap for 600 with SL Deck |
732410 |
25 |
600 Conversion Traction Kit |
503885 |
