Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

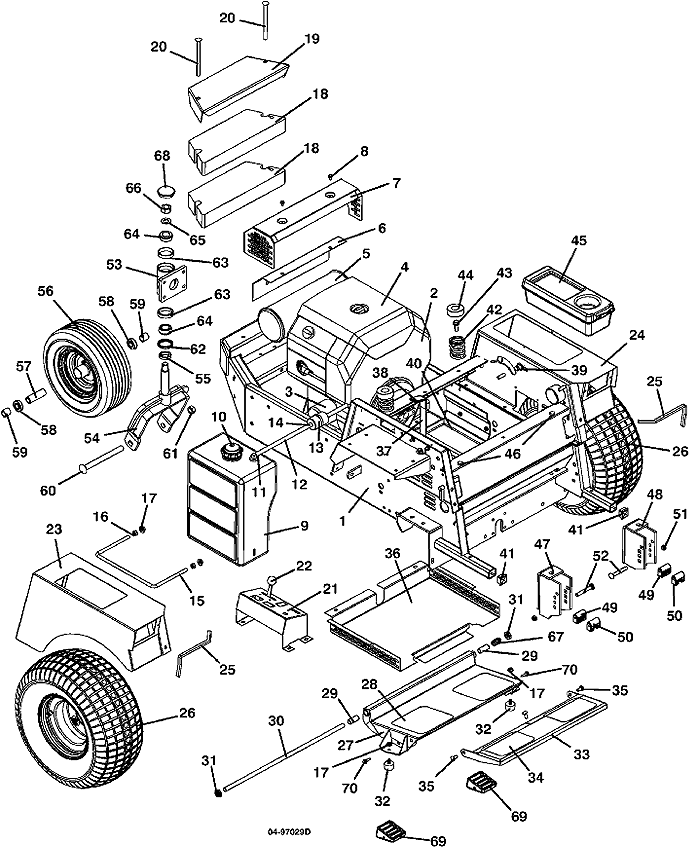

618 • Tractor Assembly

2002

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

600 Lower Frame

643835

-

600 97 Upper Frame

643838

2

18hp Kohler Engine

100144

3

Kohler Oil Filter

100802

4

Kohler Air Filter

100926

-

Kohler Precleaner Air Filter

100927

5

618 Kohler Muffler

101219

6

Inner Muffler Shield

720166

7

618 Muffler Shield

644600

8

Hex Head Screw

243002

9

600 Fuel Tank Assembly

603810

10

Fuel Cap

100210

11

Fuel Draw Tube

101830

12

Fuel Hose

821738

13

Kohler Fuel Filter

101001

14

Spring Hose Clamp

280260

15

600 Fuel Tank Mount

730450

16

Nut

254450

17

Whiz Nut

253043

18

34 lb. Counterweight

323933

19

34 lb. Weight Cover Plate

729514

20

Carriage Bolt

247325

21

200 Console Panel with Decal

693115

22

Mechanical Choke

142216

23

600S right Fender with Decals

693202

-

618 right Trim Decal

163228

24

600S left Fender with Decals

693203

-

618 left Trim Decal

163229

25

Fender Edge Trim

822631

26

20 X 10 X 8 Tan Wheel & Turf Tire

483921

-

20 X 10 X 8 Turf Tire

482472

-

21 X 11 X 8 Bar Tread Tire

482478

-

8 X 6 5-Bolt Wheel

483410

-

8 X 9.125 5-Bolt Wheel

483415

-

21 X 11 X 8 right Wheel & Bar Tread Tire

483930

-

21 X 11 X 8 left Wheel & Bar Tread Tire

483931

27

600 Adjustable Foot Platform

604347

28

Foot Rest Tread

420905

29

Nylon Bearing

422615

30

600 Footrest Pivot Rod

780656

31

Nylon Insert Nut

253470

32

Rubber Bumper

424052

33

600 Foot Platform Extension

603300

34

Footrest Extension Tread

420904

35

Carriage Bolt

247130

36

600 Series Trash Screen

721387

37

618 Throttle Assembly

603853

-

Control Cable Assembly

323643

-

Throttle Lever Stop

722009

38

Handle Grip

422150

39

Spacer

902280

-

Hex Bolt

243330

-

Washer

257040

40

600 Series Battery Box

729311

41

1 inch ID Square Plastic Plug

422065

42

Compression Spring

283516

43

Whiz Flange Bolt

253203

44

Seat Spring Cap

422127

45

Tool Box

422040

46

Rubber Bumper

424015

47

600 right QD Deck Mount

643097

48

600 left QD Deck Mount

643098

49

Deck Mount Bushing

282575

50

Floating Deck Mount Bushing

282576

51

Nylon Insert Nut

253460

52

Special Carriage Bolt

247280

53

RR Fork Pivot Housing Assembly

604596

54

Fork & Lock Nut Assembly

604365

55

Spacer

282615

56

13 x 6.5 x 6 Wheel & Tire with Bearing & Spacer

483865

-

13 X 6.5 X 6 Ribbed Tire

482355

-

6 X 4.5 Tan Wheel with Bearing & Spacer

483304

57

Rear Wheel Bearing Spacer

902475

58

Ball Bearing

120050

59

Axle Spacer

902425

60

Carriage Bolt

247725

61

Lock Nut

253970

62

Seal

125855

63

Bearing Cup

123522

64

Taper Bearing

122522

65

14 GA Bushing Washer

257091

66

Lock Nut

253992

67

Compression Spring

283312

68

Domed Dust Cap

481434

69

Footrest Isolator Block

424100

70

Hex Bolt

243026

71

Decal Set for 618 with Side Console

604292
