Genuine OEM Grasshopper Lawn Mower Parts

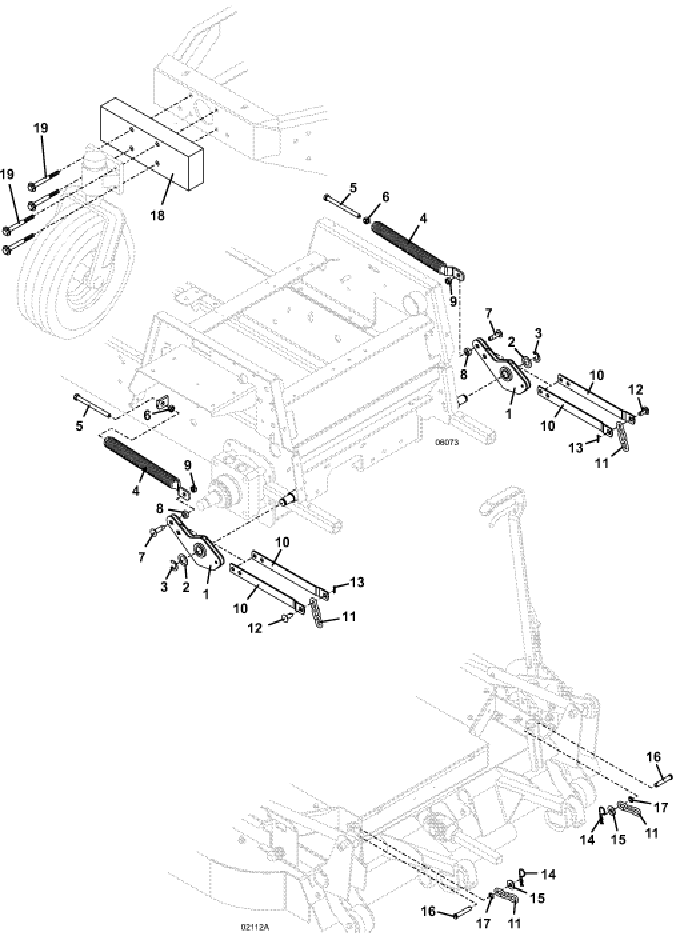

Genuine OEM Grasshopper® Mower Parts Diagrams

623t • Traction Kit

2014

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

620T Rocker

603724

-

Oilite Bearing

121764

2

18 Gauge Bushing Washer

257092

3

External Retainer

263529

4

Offset Spring and Plug Nut Assembly

604804

5

Hex Bolt

243395

6

Nut

254450

7

Carriage Bolt

247254

8

.25 Traction Kit Spacer

881095

9

Lock Nut

253890

10

600 w/SL Deck Lift Strap

732410

11

3 Links Lift Chain

820317

12

Clevis Pin

261339

13

Cotter Pin

260648

14

Hair Pin

260523

15

Washer

257040

16

Clevis Pin

261362

17

Push-On Retainer

262950

18

600 Series Counterweight

783810

19

Whiz Bolt

253212
