Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

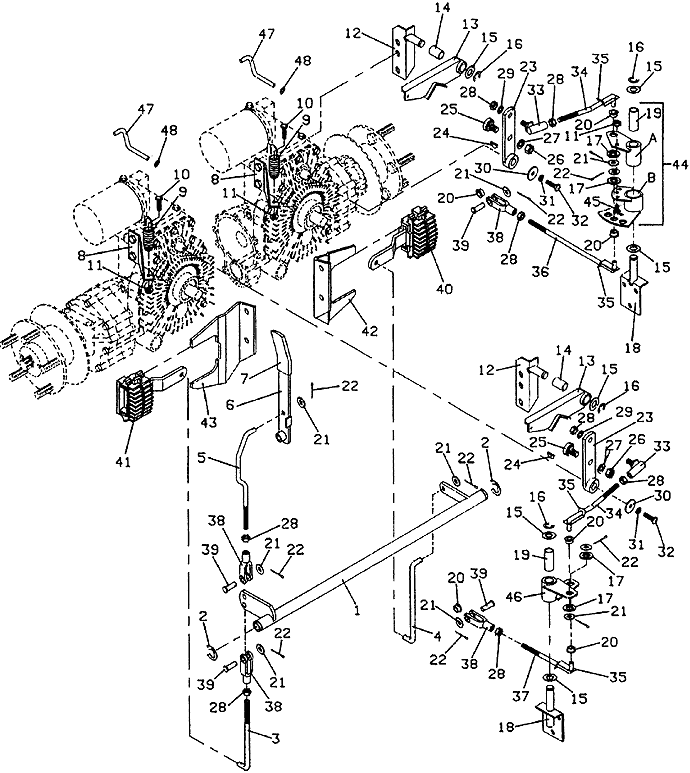

718D • Drive Linkage

1990

Drive Linkage Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Disc Brake Pivot Tube

643280

2

External Retainer

263529

3

Steering Linkage Rod

730289

4

lower left Disc Brake Rod

730355

5

Adjustable Disc Brake Rod

730356

6

700 Brake Lever Assembly

603557

7

Handle Grip

422150

8

Neutral Return Spring Bracket

729072

9

Extension Spring

283823

10

Hex Bolt

243030

11

Whiz Nut

253025

12

Neutral Return Pivot Mount

643603

13

Neutral Return Arm with Bearing

603084

14

Nylon Bearing

422560

15

Washer

257063

16

External Retainer

263500

17

Washer

257063

18

Control Linkage Pivot

643627

19

Nylon Bearing

422585

20

Nylon Bearing

422540

21

Washer

257063

22

Cotter Pin

260624

23

700 Control Arm

643057

24

Woodruff Key

281823

25

Eccentric Roller Assembly

603726

26

Nut

254450

27

Lock Washer

257412

28

Nut

254441

29

Lock Washer

257402

30

Flat Washer

774012

31

Lock Washer

257392

32

Hex Bolt

243025

33

righthand thread Ball Joint

265615

34

Linkage Control Rod

730265

35

Clip Backing

722012

36

Steering Linkage Rod

730300

37

Steering Linkage Rod

730264

38

Clevis Yoke

265537

39

Clevis Pin

261284

40

right Disc Brake

481120

-

Brake Pad Kit

603150

41

left Disc Brake

481121

-

Brake Pad Kit

603150

42

right Disc Brake Mount

725205

43

left Disc Brake Mount

725206

44

right Adjustable Steering Pivot Assembly

603012

45

Hex Whiz Bolt

253173

46

left Linkage Pivot with Bearing

603566

47

Dump Valve Lever

730088

48

Push-On Retainer

262934
