Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

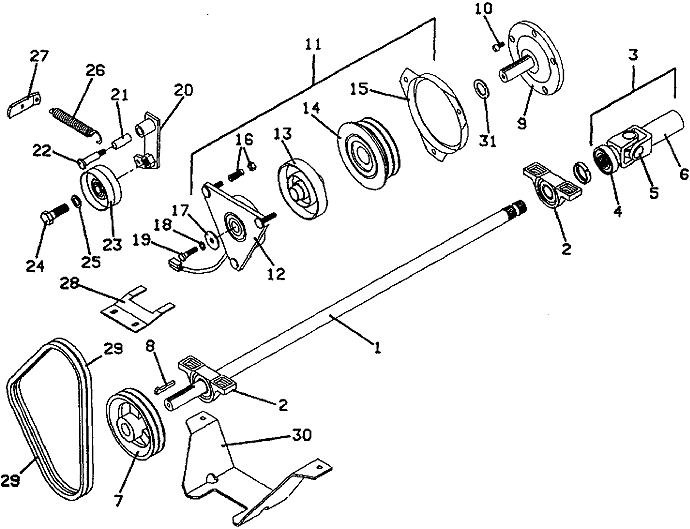

721 • PTO Shaft & Clutch Assembly

1988

PTO Shaft and Clutch Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

41.5 Power Shaft

644725

2

Pillowblock SC Bearing

122044

3

UN Half Sleeve

398914

4

Quick Disconnect Splined Yoke

401019

5

Cross & Bearing

121010

6

Yoke with Sleeve

401015

7

Sheave

415650

8

Square Gib Key

281588

9

Clutch Stub Shaft Kit

503715

10

M8 Socket Head Screw

270075

11

MS 1.00 Clutch Kit Assembly

604180

12

Field Assembly

388796

13

Rotor Assembly

388797

14

Armature with Pulley

388792

15

Brake Drum

388793

16

Spring/Nut Assembly

388791

17

Washer

883801

18

Lock Washer

257412

19

GR8 Hex Bolt

243344

20

PTO Idler Arm Assembly

603441

21

Nylon Bearing

422585

22

Shoulder Bolt

259745

23

Idler

393175

24

Hex Bolt

243810

25

Lock Washer

257452

26

Extension Spring with Swivel

283820

27

Idler Spring Bracket

732835

28

Anti-Rotation Clutch Bracket

729088

29

Belt

381914

30

700 Sheave Guard

725272

31

Washer

257107
