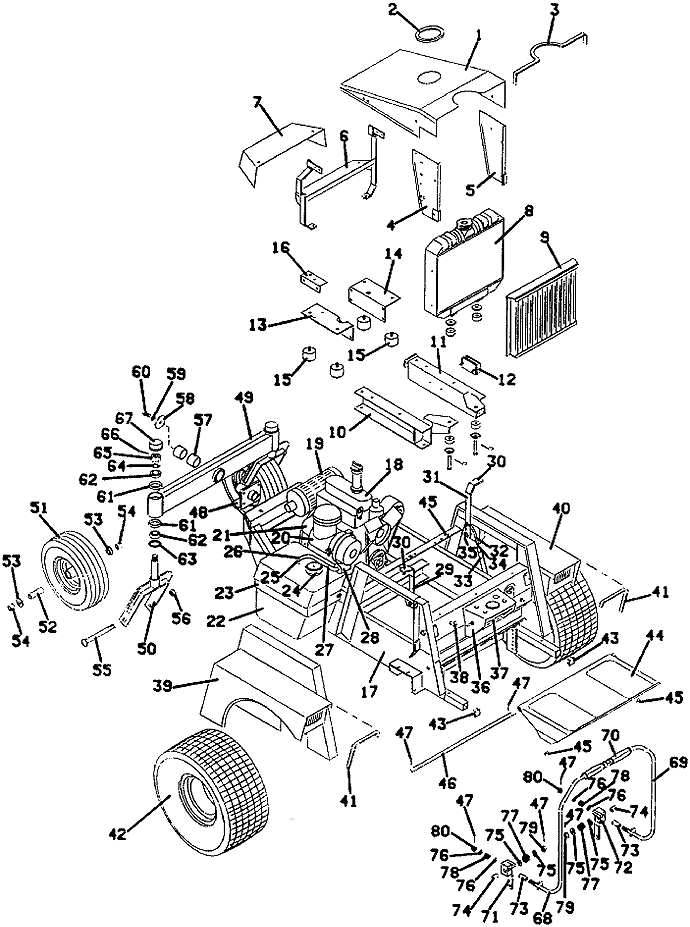

721 • Tractor Assembly

1988

Tractor Assembly

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hood Panel

643409

2

Hood Panel Hole Trim

822633

3

Hood Panel / Console Hole Trim

822650

4

right Cowling Support

643794

5

left Cowling Support

643793

6

rear Hood Support

643797

7

Clutch Shield

643766

8

Kubota Radiator

101605

9

Radiator Grille

643400

10

Lower right Engine Mount

643604

11

Lower left Engine Mount

643605

12

12v Voltage Regulator

185530

13

Upper right Engine Mount

643292

14

Upper left Engine Mount

643291

15

Vibration Isolator

424078

16

Coil Bracket

724091

17

718D/721 Tractor Frame

643392

18

Kubota Gas Engine

100175

19

Muffler & Gasket Assembly

603590

20

Kubota Air Filter

100940

21

Formed Air Intake Hose

424519

22

Gasoline Fuel Tank Assembly (Brown)

603817

23

Fuel Tank Mounting Bracket

643144

24

Cap with Fuel Level

141125

25

Fuel Draw Tube

101818

26

Screw-type Hose Clamp

280270

27

Fuel Line Hose

821713

28

Kubota Fuel Pre-Filter

101005

29

721/725/725G2 Throttle Assembly

604823

-

Throttle Cable Replacement Kit

604820

30

Handle Grip

422150

31

Brake Lever

643511

32

Brake Linkage Rod

730291

33

Brake Linkage Strap

824646

34

Nut

254441

35

Hair Pin

260520

36

721 Console

623241

37

Console Front Panel

721076

38

Mechanical Choke Housing

142224

39

700 Series right Fender

643352

-

721 right Trim Decal

163208

40

700 Series left Fender

643353

-

721 left Trim Decal

163209

41

700/900 Fender Edge Trim

822635

42

20 x 10 x 8 Tan Wheel & Turf Tire

483921

-

5-Bolt 8 x 6 Wheel

483410

43

1 inch ID Square Plastic Plug

422065

44

Foot Rest

603345

45

Rubber Bumper

424015

46

Foot Rest Pivot Rod

780658

47

Cotter Pin

260652

48

rear Axle Pivot Assembly

604597

49

Dual Wheel Beam

824510

50

Rear Fork & Lock Nut Assembly

604364

51

13 x 5 x 6 Wheel & Tire with Bearing & Spacer

483861

-

13 x 5.00 x 6 Tubeless Ribbed Tire

482350

-

6 x 3.25 Tan Wheel with Bearing & Spacer

483301

52

Rear Wheel Bearing Spacer

902475

53

Ball Bearing

120050

54

Axle Spacer

902425

55

Carriage Bolt

247725

56

Lock Nut

253970

57

Reamed Oilite Bearing

833275

58

Washer

257061

59

Lock Washer

257432

60

Hex Bolt

243560

61

Bearing Cup

123522

62

Tapered Bearing

122522

63

Seal

125855

64

14 GA Bushing Washer

257091

65

Nut

254502

66

Cotter Pin

260670

67

Dust Cap

481432

68

right 700 Series Steering Lever

643506

69

left 700 Series Steering Lever

643507

70

Handle Grip

422160

71

right Steering Lever Pivot

643658

72

left Steering Lever Pivot

643659

73

Nylon Bearing

422580

74

Nylon Bearing

422560

75

Washer

257067

76

Washer

257063

77

Compression Spring

283381

78

Compression Spring

283324

79

Slotted Flange Nut

830355

80

Nut with Nylon Insert

253470

81

721 Decal Set

603271

return to 721 index return to top of page
