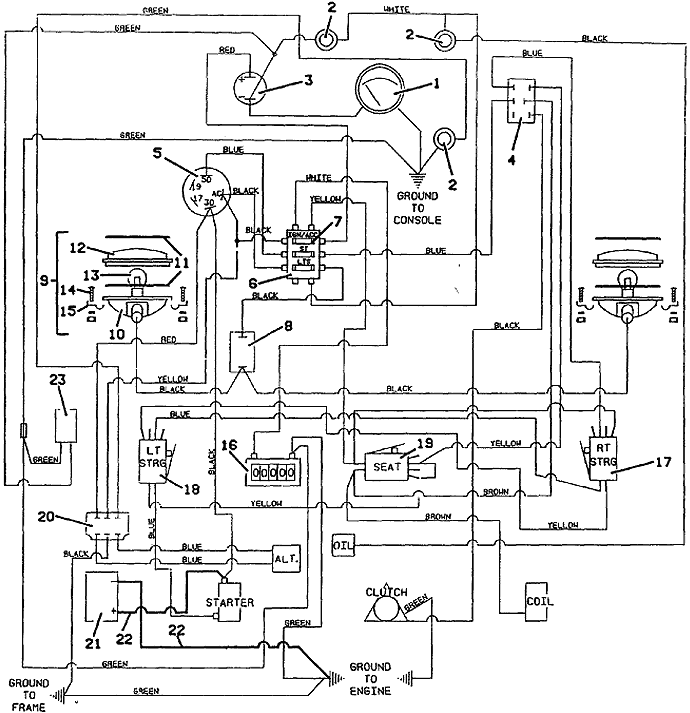

721 • Wiring & Lights
1988
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
Temperature Gauge |
141152 |
2 |
Indicator Light |
182310 |
3 |
Signal Buzzer |
182460 |
- |
Buzzer & Mount Assembly |
603190 |
4 |
PTO Switch & Cover Assembly |
604796 |
5 |
Kubota Sealed Key Switch |
183827 |
6 |
721 Mounted Fuse Block |
603132 |
7 |
6 amp Fuse |
181540 |
8 |
Light Toggle Switch |
183950 |
9 |
Worklamp Assembly |
182265 |
10 |
Rectangular Lamp Housing |
182350 |
11 |
Lamp Assembly Gasket |
420550 |
12 |
Rectangular Lamp Lens |
182400 |
13 |
Worklamp Light Bulb |
182000 |
14 |
Machine Screw |
250258 |
15 |
Conduit Clip |
180635 |
16 |
Snap-In Hour Meter |
141551 |
- |
Hour Meter Mounting Bracket |
722028 |
17 |
Safety Lever Switch |
183865 |
- |
right Switch Mount |
722020 |
18 |
Safety Lever Switch |
183865 |
- |
left Switch Mount |
722021 |
19 |
Safety Lever Switch |
183865 |
- |
Machine Screw |
250318 |
- |
Clevis Pin |
261328 |
- |
Compression Spring |
283322 |
- |
Seat Safety Switch & Mount Assembly |
603790 |
- |
Seat Switch Mount |
724100 |
20 |
12v Voltage Regulator |
185530 |
21 |
12 Volt Side Post Wet Battery |
180130 |
- |
Battery Box |
643135 |
- |
Battery Box Cover |
643241 |
- |
Battery Clamp |
720604 |
22 |
11" Red Battery Cable |
180310 |
- |
16" Red Battery Cable |
180316 |
- |
Starter Terminal Boot |
425219 |
23 |
Brake Interlock Switch |
183894 |
