Genuine OEM Grasshopper® Mower Parts Diagrams
721 • Tractor Assembly
1997

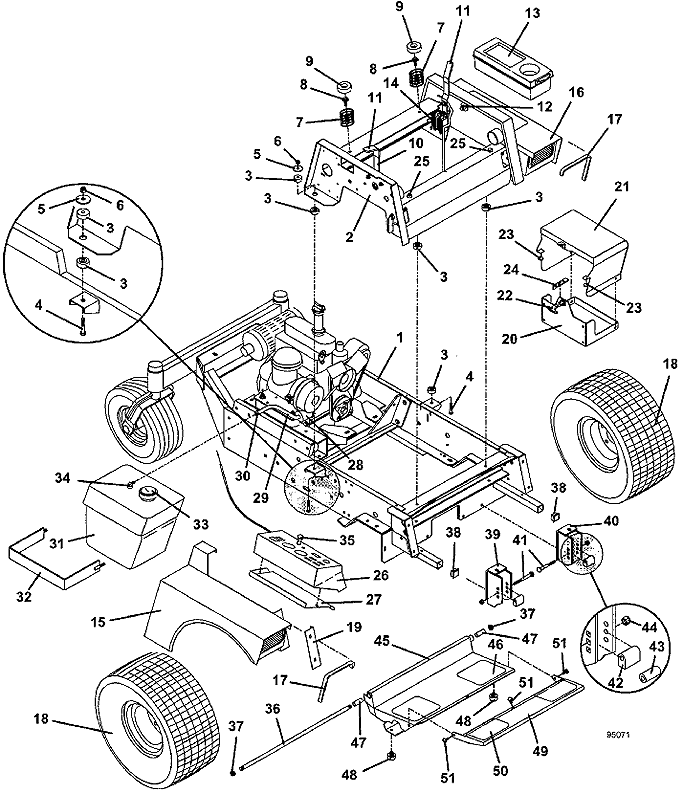

Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
700 Frame |
644230 |
2 |
96 Upper Frame |
643867 |
3 |
Step Bushing |
257037 |
4 |
Hex Bolt |
243220 |
5 |
Washer |
774020 |
6 |
Nylon Insert Nut |
253450 |
7 |
Compression Spring |
283516 |
8 |
Whiz Flange Bolt |
253203 |
9 |
Seat Spring Cap |
422127 |
10 |
721/725/725G2 Throttle Assembly |
604823 |
- |
Throttle Cable Replacement Kit for Gas Engine |
604820 |
11 |
Handle Grip |
422150 |
12 |
Spacer |
902280 |
- |
Hex Bolt |
243330 |
- |
Washer |
257040 |
13 |
Tool Box |
422040 |
14 |
12v Voltage Regulator |
185530 |
15 |
700/900 right Fender with Safety Decal |
693210 |
- |
721 right Trim Decal |
163208 |
16 |
700/900 left Fender with Safety Decal |
693211 |
- |
721 left Trim Decal |
163209 |
17 |
700/900 Fender Edge Trim |
822635 |
18 |
20 x 10 x 8 Tan Wheel & Turf Tire |
483921 |
- |
20 x 10 x 8 Turf Tire |
482471 |
- |
21 x 11 x 8 Bar Tread Tire |
482478 |
- |
5-Bolt 8 x 6 Wheel |
483410 |
- |
5-Bolt 8 x 9.125 Wheel |
483415 |
- |
21 x 11 x 8 right Wheel & Bar Tread Tire |
483930 |
- |
21 x 11 x 8 left Wheel & Bar Tread Tire |
483931 |
19 |
right Fender Cover Panel |
722062 |
20 |
Contour Battery Box Assembly |
603105 |
21 |
Battery Box Assembly Lid |
603570 |
22 |
Rubber Draw Latch |
281301 |
23 |
Rubber Bumper |
424029 |
24 |
Bolt-On Battery Clamp |
723017 |
25 |
Rubber Bumper |
424015 |
26 |
Console with Decal for Liquid-Cooled Engines |
693105 |
27 |
96 Side Console Fill Panel |
721152 |
28 |
Kubota Fuel Pre-Filter |
101005 |
29 |
Fuel Line Hose |
821713 |
30 |
Screw-type Hose Clamp |
280270 |
31 |
Gasoline Fuel Tank Assembly (Brown) |
603817 |
32 |
Fuel Tank Mounting Bracket |
643144 |
33 |
Cap with Fuel Level |
141125 |
34 |
Fuel Draw Tube |
101818 |
35 |
Mechanical Choke |
142218 |
36 |
700 Foot Platform Pivot Rod |
780673 |
37 |
Nylon Insert Nut |
253470 |
38 |
1 inch ID Square Plastic Plug |
422065 |
39 |
700/900 right QD Deck Mount |
643092 |
40 |
700/900 left QD Deck Mount |
643093 |
41 |
Special Carriage Bolt |
247280 |
42 |
Deck Mount Bushing |
282575 |
43 |
Floating Deck Mount Bushing |
282576 |
44 |
Nylon Insert Nut |
253460 |
45 |
700/900 Adjustable Foot Platform Assembly |
604346 |
46 |
Foot Rest Tread |
420905 |
47 |
Nylon Bearing |
422615 |
48 |
Rubber Bumper |
424052 |
49 |
700 Foot Platform Extension |
603301 |
50 |
Foot Rest Tread Extension |
420904 |
51 |
Carriage Bolt |
247130 |
52 |
721 Decal Set |
603271 |
