Genuine OEM Grasshopper Lawn Mower Parts

Genuine OEM Grasshopper® Mower Parts Diagrams

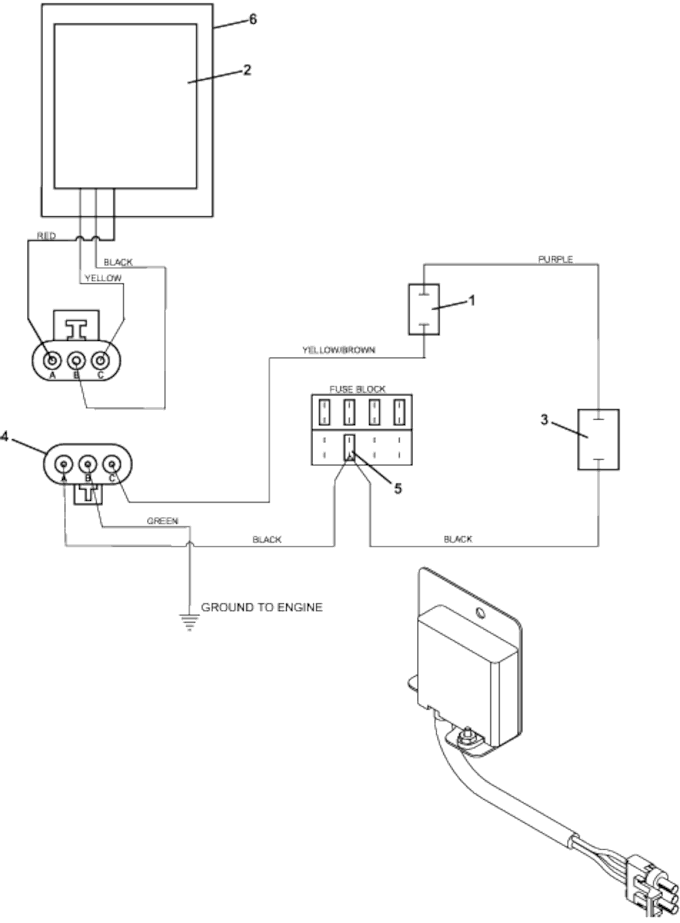

721DH2 • Optional Hydraulic Lift Wiring Diagram

2005

Hydraulic Lift Wiring (Optional)

Click On a Part Number Below for Details

NOTE: If the part number you select is not linked to the shopping cart,
call toll-free 866-698-4070 for availability.

Item #

Description

Part Number

1

Hydraulic Solenoid Valve

144950

2

Tilt Switch Power Components

183710

3

Sealed Dome Switch

183940

-

Black Button Cup

183943

-

Momentary Toggle

183954

4

3-Way Male Connector

184973

5

7.50 Auto ATC Fuse

181460

6

Tilt Switch Mount

722747
