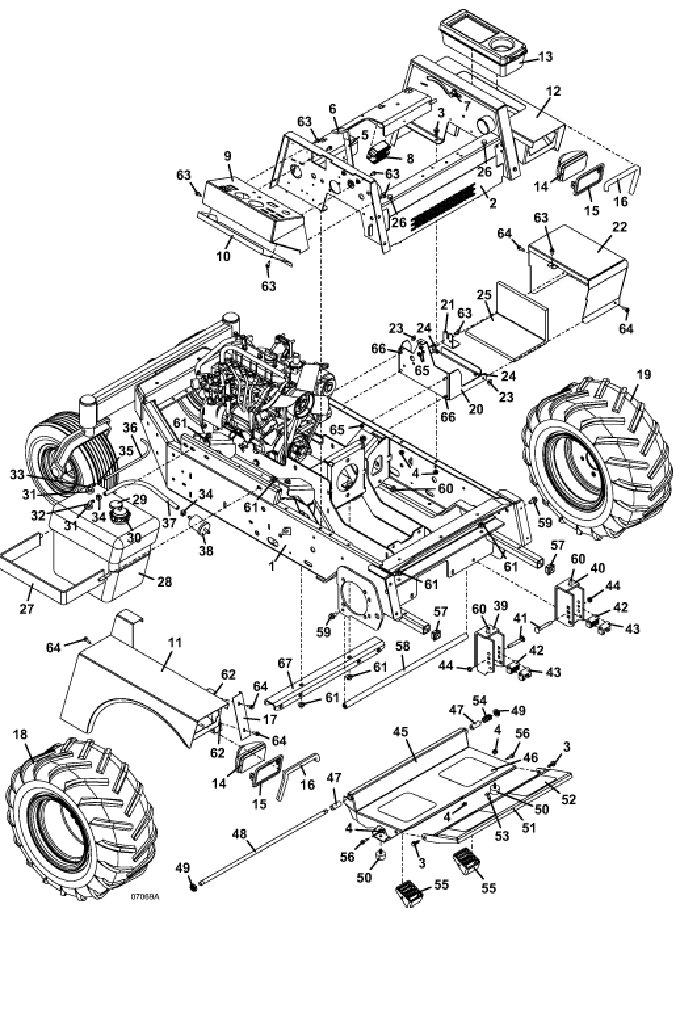

Item # |
Description |
Part Number |
1 |
700T WC Lower Frame |
644877 |
2 |
700T Upper Frame |
644874 |
3 |
Hex Flange Whiz Bolt |
253192 |
4 |
Whiz Nut |
253035 |
5 |
700 W/C Throttle Assembly |
605820 |
- |
Throttle Control Cable Assembly |
323657 |
- |
Throttle Lever Stop |
722009 |
- |
Heavy Duty Throttle Stop |
722736 |
6 |
Handle Grip |
422150 |
7 |
Spacer |
902280 |
8 |
12V Voltage Regulator |
185530 |
9 |
Console with Decal for Liquid-Cooled Diesel Engine |
693104 |
10 |
Fill Panel for 96 Console |
721152 |
11 |
700/900 Right Fender with Safety Decal |
693210 |
- |
721D Right Trim Decal |
163458 |
12 |
700/900 Left Fender with Safety Decal |
693211 |
- |
721D Left Trim Decal |
163459 |
13 |
Tool Box |
422040 |
14 |
Flood Worklamp |
182253 |
15 |
Snap Mount Worklamp Bezel |
182251 |
16 |
700/900 Fender Edge Trim |
822635 |
17 |
right Fender Cover Panel |
722062 |
18 |
right Wheel & Bar Tread Tire, 22 x 11 x 10 |
483942 |
- |
Turf Tire Only, 22 x 10 x 10 |
482473 |
- |
Bar Tread Tire Only, 22 x 11 x 10 |
482483 |
- |
5 Bolt Wheel Only, 10 x 8.5 |
483420 |
- |
Wheel & Turf Tire, 22 x 10 x 10 |
483946 |
19 |
left Wheel & Bar Tread Tire, 22 x 11 x 10 |
483943 |
- |
Turf Tire Only, 22 x 10 x 10 |
482473 |
- |
Bar Tread Tire Only, 22 x 11 x 10 |
482483 |
- |
5 Bolt Wheel Only, 10 x 8.5 |
483420 |
- |
Wheel & Turf Tire, 22 x 10 x 10 |
483946 |
20 |
Battery Box without Draw Latch |
644163 |
21 |
Battery Hold Down Bracket |
754135 |
22 |
Battery Box Lid w/o Lid |
644478 |
23 |
Washer |
257020 |
24 |
Nylon Insert Nut |
253440 |
25 |
Battery Tray Pad |
427278 |
26 |
Rubber Bumper |
424015 |
27 |
Fuel Tank Mounting Bracket |
643144 |
28 |
Diesel Tank Assembly |
604837 |
29 |
Fuel Intake Gauge |
141142 |
- |
Grommet |
424275 |
30 |
Screw-On Diesel Fuel Cap |
100211 |
31 |
Grommet |
101875 |
32 |
Fuel Tube |
363929 |
33 |
Fuel Tube |
363923 |
34 |
Spring Hose Clamp |
280261 |
35 |
Spring Hose Clamp |
280257 |
36 |
Fuel Return Hose |
821740 |
37 |
Fuel Line Hose |
821730 |
38 |
Kubota Fuel Prefilter |
101005 |
39 |
700/900 right Quick Disconnect Deck Mount |
643092 |
40 |
700/900 left Quick Disconnect Deck Mount |
643093 |
41 |
Special Carriage Bolt |
247280 |
42 |
Deck Mount Bushing |
282575 |
43 |
Floating Deck Mount Bushing |
282576 |
44 |
Nylon Insert Nut |
253460 |
45 |
Adjustable Foot Platform Assembly - 700/900 |
604346 |
46 |
Foot Rest Tread |
420905 |
47 |
Nylon Bearing |
422615 |
48 |
Foot Platform Pivot Rod - 700 |
780673 |
49 |
Nylon Insert Nut |
253470 |
50 |
Rubber Bumper |
424052 |
51 |
Foot Platform Extension - 700 |
603301 |
52 |
Foot Rest Extension Tread |
420904 |
53 |
Carriage Bolt |
247130 |
54 |
Compression Spring |
283312 |
55 |
Footrest Isolator Block |
424100 |
56 |
Hex Bolt |
243026 |
57 |
Square Plastic Plug |
422065 |
58 |
Tension Rod |
780900 |
59 |
Whiz Bolt |
253200 |
60 |
Flange Whiz Bolt |
253203 |
61 |
Whiz Nut |
253043 |
62 |
Speed Nut |
254431 |
63 |
Hex Whiz Bolt |
253173 |
64 |
Hex Whiz Bolt |
253175 |
65 |
Whiz Nut |
253025 |
66 |
Truss Whiz Bolt |
253176 |
67 |
700T WC Center Crossmember |
725511 |
68 |
721DT Decal Set |
605329 |
