Genuine OEM Grasshopper® Mower Parts Diagrams

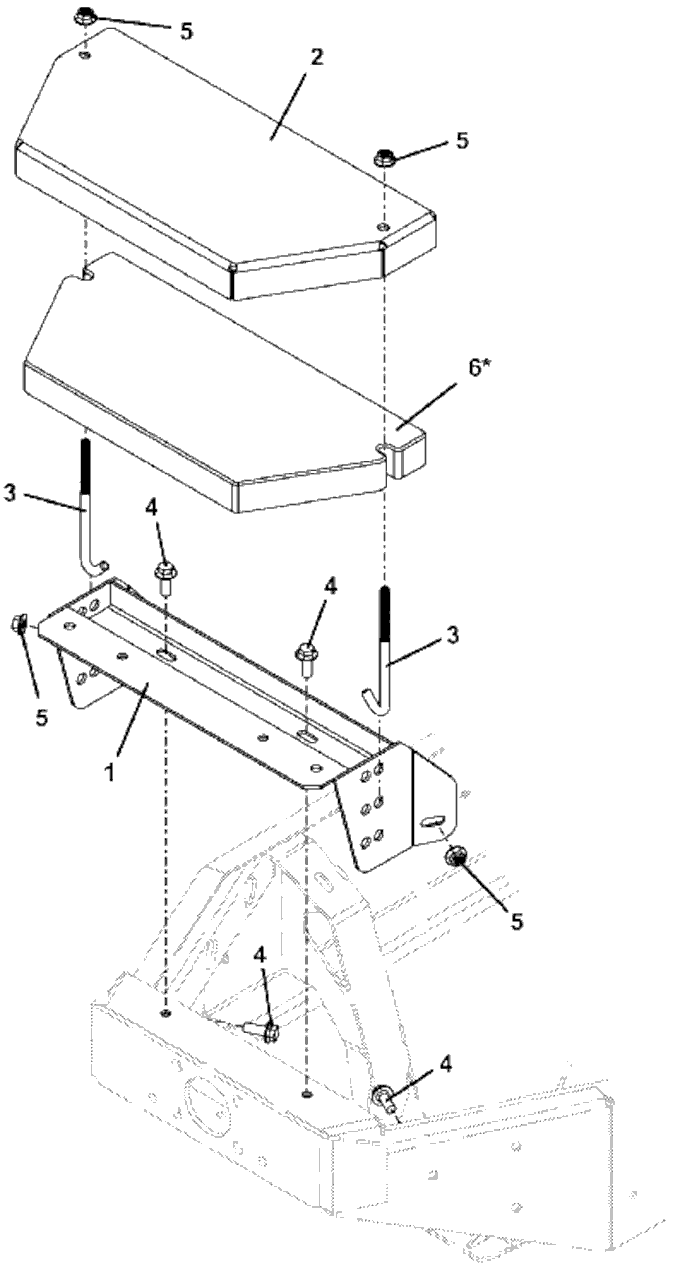

721DT • Counterweight Mount Kit
2015
Click On a Part Number Below for Details
NOTE: If the part number you select is not linked to the shopping cart, call toll-free 866-698-4070 for availability.
Item # |
Description |
Part Number |
1 |
700/900 Weight Mount |
644915 |
2 |
50 lb. Weight Cover |
729691 |
3 |
Hook Bolt |
240151 |
4 |
Flange Whiz Bolt |
253203 |
5 |
Whiz Nut |
253043 |
6 |
50 lb. Counterweight |
503218 |
7 |
Counterweight Mount Kit |
503220 |
